DC DC CONVERTER 350V 2.5W

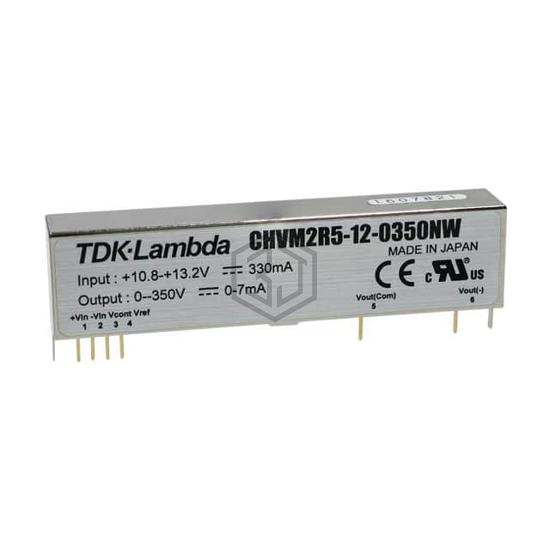

CHVM2R5-12-0350PW is a DC DC Converters manufactured by TDK-Lambda Americas Inc. DC DC CONVERTER 350V 2.5W. Key specifications: mounting type Through Hole, operating temperature -10°C ~ 60°C (With Derating), package / case 6-SIP Module, current - output (max) 7mA.
In Stock: 10
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 10.8V |
| Voltage - Input (Max) | 13.2V |
| Voltage - Output 1 | 350V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 7mA |
| Power (Watts) | 2.45 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Operating Temperature | -10°C ~ 60°C (With Derating) |
| Efficiency | - |
| Mounting Type | Through Hole |
| Package / Case | 6-SIP Module |
| Size / Dimension | 3.15" L x 0.47" W x 0.78" H (80.0mm x 12.0mm x 19.8mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active High |
| Approval Agency | CE, CSA, UL |
| Standard Number | 62368-1 |
