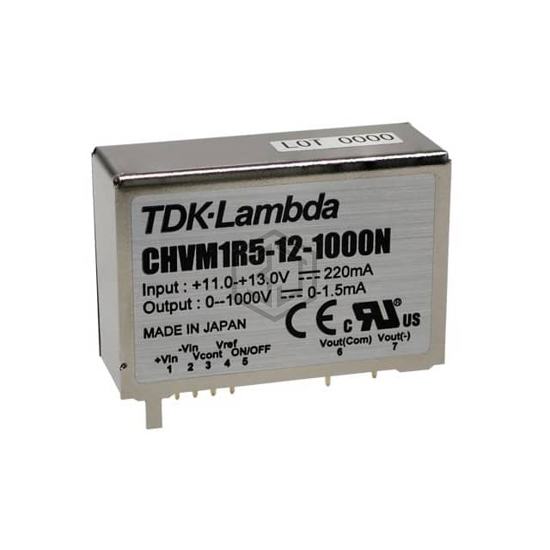

DC DC CONVERTER -1000V 1.5W
CHVM1R5-12-1000N is a DC DC Converters manufactured by TDK-Lambda Americas Inc. DC DC CONVERTER -1000V 1.5W. Key specifications: mounting type Through Hole, operating temperature -10°C ~ 50°C, package / case 7-SIP Module, current - output (max) 1.5mA.
In Stock: 12
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Non-Isolated PoL Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 11V |
| Voltage - Input (Max) | 13V |
| Voltage - Output 1 | -1000V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.5mA |
| Power (Watts) | 1.5 W |
| Voltage - Isolation | - |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Operating Temperature | -10°C ~ 50°C |
| Efficiency | - |
| Mounting Type | Through Hole |
| Package / Case | 7-SIP Module |
| Size / Dimension | 1.73" L x 0.63" W x 1.18" H (44.0mm x 16.0mm x 30.0mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | CE, CSA, UL |
| Standard Number | 62368-1 |
Submit your RFQ for CHVM1R5-12-1000N and get a quote within 24 hours.
