DC DC CONVERTER 12V 3W

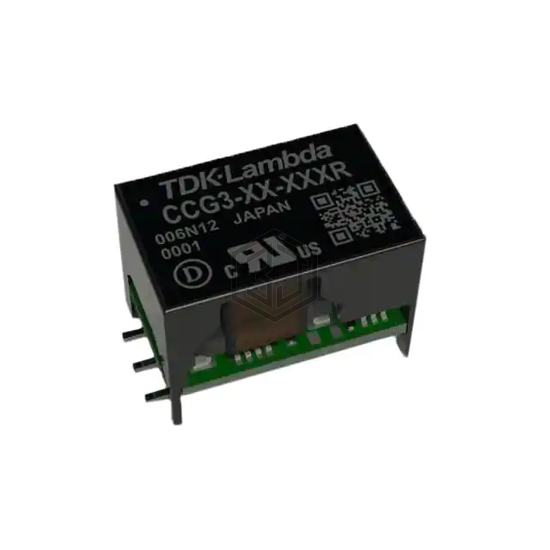

CCG3-24-12SR is a DC DC Converters manufactured by TDK-Lambda Americas Inc. DC DC CONVERTER 12V 3W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C (With Derating), package / case 6-SMD Module, current - output (max) 250mA.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 250mA |
| Power (Watts) | 3 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 83% |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD Module |
| Size / Dimension | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | 62368-1 |
Submit your RFQ for CCG3-24-12SR and get a quote within 24 hours.
