DC DC CONVERTER 5V 1.5W

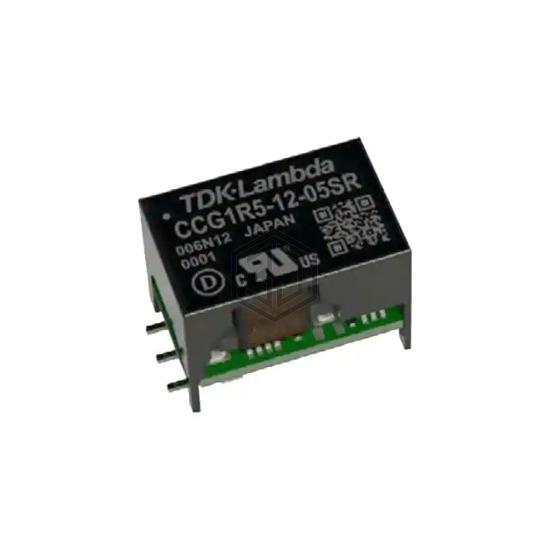

CCG1R5-48-05SR is a DC DC Converters manufactured by TDK-Lambda Americas Inc. DC DC CONVERTER 5V 1.5W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 100°C (With Derating), package / case 6-SMD Module, current - output (max) 300mA.
In Stock: 5
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 18V |
| Voltage - Input (Max) | 76V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 300mA |
| Power (Watts) | 1.5 W |
| Voltage - Isolation | 1.5 kV |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off, Remote Sense |
| Operating Temperature | -40°C ~ 100°C (With Derating) |
| Efficiency | 76% |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD Module |
| Size / Dimension | 0.62" L x 0.41" W x 0.45" H (15.7mm x 10.4mm x 11.5mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | 62368-1 |
Submit your RFQ for CCG1R5-48-05SR and get a quote within 24 hours.
