DC DC CNVRTR +/-12V TO +/-15V 6W

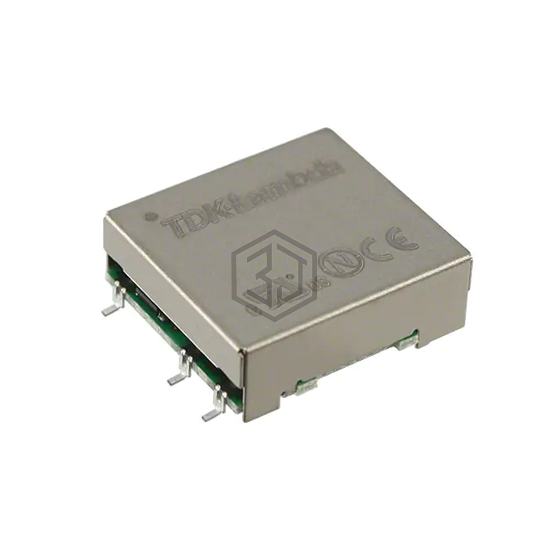

CC6-4812DR-E is a DC DC Converters manufactured by TDK-Lambda Americas Inc. DC DC CNVRTR +/-12V TO +/-15V 6W. Key specifications: mounting type Surface Mount, operating temperature -40°C ~ 85°C, package / case 7-SMD Module, current - output (max) 250mA, 250mA.
In Stock: 7,355
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 76V |
| Voltage - Output 1 | 12 ~ 15V |
| Voltage - Output 2 | -12 ~ -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 250mA, 250mA |
| Power (Watts) | 6 W |
| Voltage - Isolation | 500 V |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | - |
| Mounting Type | Surface Mount |
| Package / Case | 7-SMD Module |
| Size / Dimension | 0.90" L x 0.83" W x 0.35" H (22.9mm x 21.1mm x 8.8mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for CC6-4812DR-E and get a quote within 24 hours.
