DC DC CNVRTR +/-12V TO +/-15V 1W

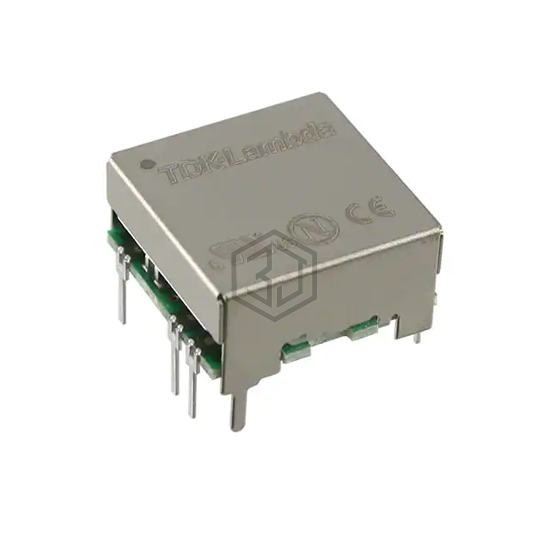

CC1R5-4812DF-E is a DC DC Converters manufactured by TDK-Lambda Americas Inc. DC DC CNVRTR +/-12V TO +/-15V 1W. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, package / case 7-DIP Module, current - output (max) 60mA, 60mA.
In Stock: 1
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Isolated Module |
| Number of Outputs | 2 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 76V |
| Voltage - Output 1 | 12 ~ 15V |
| Voltage - Output 2 | -12 ~ -15V |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 60mA, 60mA |
| Power (Watts) | 1 W |
| Voltage - Isolation | 500 V |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | - |
| Mounting Type | Through Hole |
| Package / Case | 7-DIP Module |
| Size / Dimension | 0.65" L x 0.65" W x 0.34" H (16.5mm x 16.6mm x 8.5mm) |
| Supplier Device Package | - |
| Control Features | Enable, Active Low |
| Approval Agency | - |
| Standard Number | - |
Submit your RFQ for CC1R5-4812DF-E and get a quote within 24 hours.
