TRANSF TELE COUP 600:510 OHM SMD

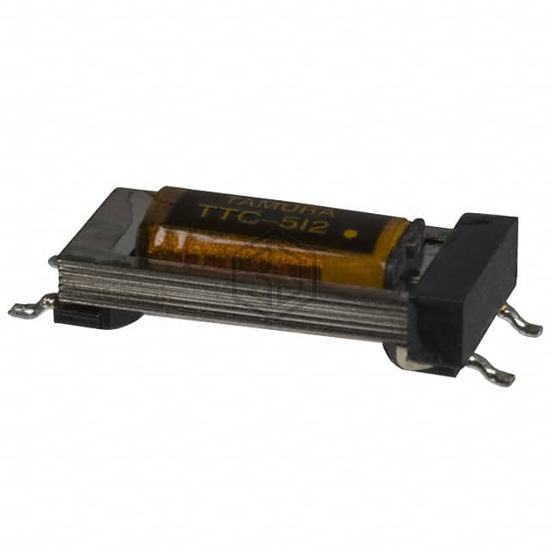

TTC-512 is a Audio Transformers manufactured by Tamura. TRANSF TELE COUP 600:510 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -10°C ~ 60°C, size / dimension 0.390" L x 0.665" W (9.90mm x 17.80mm), termination style Gull Wing.
In Stock: 5,828
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Turns Ratio - Primary:Secondary | 1:1 |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 510 |
| DC Resistance (DCR) - Primary | 58Ohm |
| DC Resistance (DCR) - Secondary | 70Ohm |
| Transformer Type | - |
| Frequency Range | 300Hz ~ 3.5kHz |
| Frequency Response | ±0.3dB ~ ±0.5dB |
| Voltage - Isolation | 1875VRMS @ 1 Second |
| Insertion Loss | 1.25dB @ 1kHz |
| Return Loss | 16dB Min @ 300Hz ~ 3.5kHz |
| Power Level | 3.5dB |
| Operating Temperature | -10°C ~ 60°C |
| Approval Agency | UL1950, UL60950, EN60950 |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.390" L x 0.665" W (9.90mm x 17.80mm) |
| Height - Seated (Max) | 0.181" (4.60mm) |
| Termination Style | Gull Wing |
