TRANSFORMR MODEM 600:346 OHM SMD

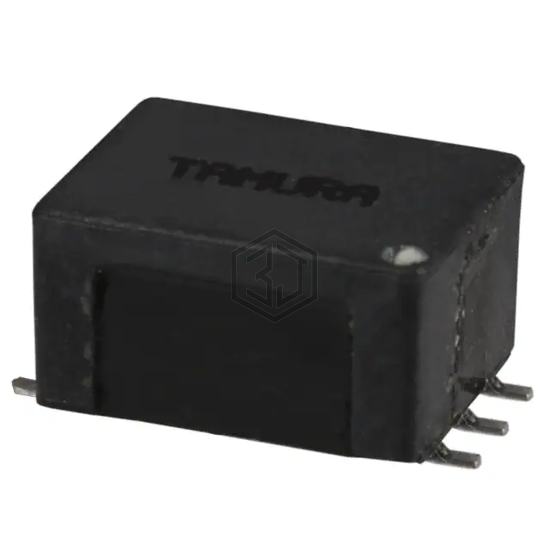

TTC-5035 is a Audio Transformers manufactured by Tamura. TRANSFORMR MODEM 600:346 OHM SMD. Key specifications: mounting type Surface Mount, operating temperature -20°C ~ 85°C, size / dimension 0.378" L x 0.492" W (9.60mm x 12.50mm), termination style Flat Lead.
In Stock: 4,351
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 1:1 |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 346 |
| DC Resistance (DCR) - Primary | 135Ohm |
| DC Resistance (DCR) - Secondary | 135Ohm |
| Transformer Type | Data/Voice Coupling |
| Frequency Range | 200Hz ~ 4kHz |
| Frequency Response | ±0.2dB |
| Voltage - Isolation | 1875VRMS @ 1 Second |
| Insertion Loss | 3dB Max @ 2kHz |
| Return Loss | 16dB Min @ 200Hz ~ 4kHz |
| Power Level | - |
| Operating Temperature | -20°C ~ 85°C |
| Approval Agency | UL60950, EN60950 |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.378" L x 0.492" W (9.60mm x 12.50mm) |
| Height - Seated (Max) | 0.299" (7.60mm) |
| Termination Style | Flat Lead |
Submit your RFQ for TTC-5035 and get a quote within 24 hours.
