TRANSFORMER TELECOMM 600:490 OHM

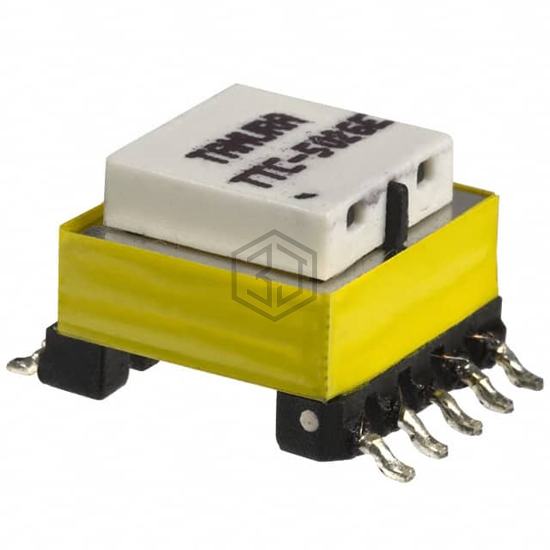

TTC-5026 is a Audio Transformers manufactured by Tamura. TRANSFORMER TELECOMM 600:490 OHM. Key specifications: mounting type Surface Mount, size / dimension 0.532" L x 0.551" W (13.50mm x 14.00mm), termination style Gull Wing, frequency range 300Hz ~ 3.5kHz.
In Stock: 5,002
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Turns Ratio - Primary:Secondary | 1:1 |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 490CT |
| DC Resistance (DCR) - Primary | 23.8Ohm |
| DC Resistance (DCR) - Secondary | 47.8Ohm |
| Transformer Type | Data/Voice Coupling |
| Frequency Range | 300Hz ~ 3.5kHz |
| Frequency Response | ±0.3dB |
| Voltage - Isolation | 1875VRMS @ 1 Second |
| Insertion Loss | 1.5dB Max @ 1kHz |
| Return Loss | - |
| Power Level | - |
| Operating Temperature | - |
| Approval Agency | UL1950, UL60950 |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.532" L x 0.551" W (13.50mm x 14.00mm) |
| Height - Seated (Max) | 0.409" (10.40mm) |
| Termination Style | Gull Wing |
Submit your RFQ for TTC-5026 and get a quote within 24 hours.
