TRANSFORMER TELECOMM 600:600 OHM

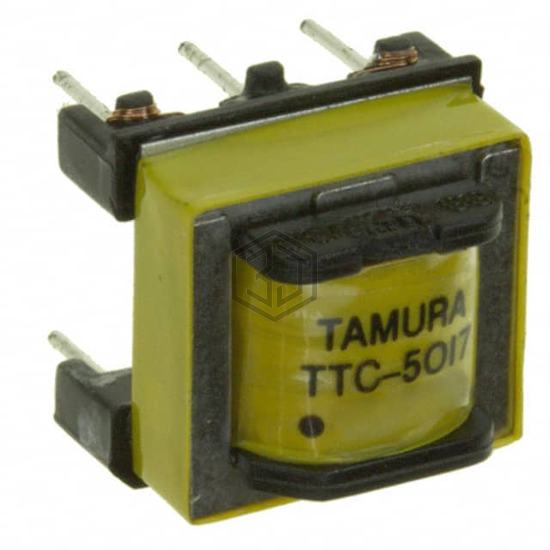

TTC-5017 is a Audio Transformers manufactured by Tamura. TRANSFORMER TELECOMM 600:600 OHM. Key specifications: mounting type Through Hole, size / dimension 0.591" L x 0.571" W (15.00mm x 14.50mm), termination style PC Pin, frequency range 200Hz ~ 4kHz.
In Stock: 15,259
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 1:1 |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 600 |
| DC Resistance (DCR) - Primary | 59Ohm |
| DC Resistance (DCR) - Secondary | 59Ohm |
| Transformer Type | Data/Voice Coupling |
| Frequency Range | 200Hz ~ 4kHz |
| Frequency Response | ±0.5dB |
| Voltage - Isolation | 1875VRMS @ 1 Second |
| Insertion Loss | 1.5dB Max @ 1kHz |
| Return Loss | 14dB Min @ 200Hz ~ 4kHz |
| Power Level | - |
| Operating Temperature | - |
| Approval Agency | UL60950 |
| Mounting Type | Through Hole |
| Size / Dimension | 0.591" L x 0.571" W (15.00mm x 14.50mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Termination Style | PC Pin |
Submit your RFQ for TTC-5017 and get a quote within 24 hours.
