TRANSFORMER COUPLING 600:530 OHM

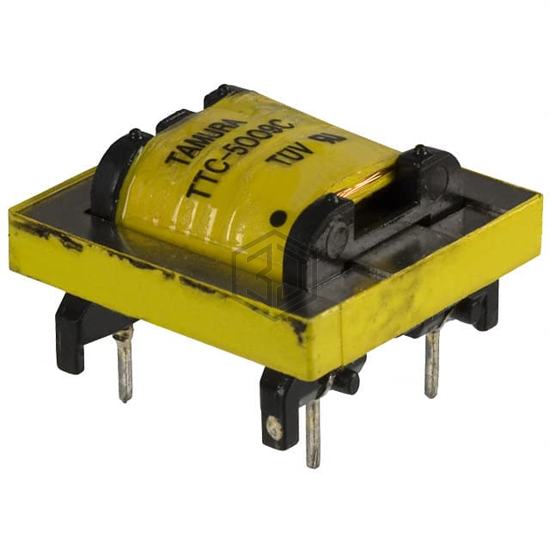

TTC-5009 is a Audio Transformers manufactured by Tamura. TRANSFORMER COUPLING 600:530 OHM. Key specifications: mounting type Through Hole, size / dimension 0.886" L x 0.909" W (22.50mm x 23.10mm), termination style PC Pin, frequency range 200Hz ~ 4kHz.
In Stock: 7,983
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Turns Ratio - Primary:Secondary | 1:1 |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 530 |
| DC Resistance (DCR) - Primary | 46Ohm |
| DC Resistance (DCR) - Secondary | 45Ohm |
| Transformer Type | - |
| Frequency Range | 200Hz ~ 4kHz |
| Frequency Response | ±0.25dB |
| Voltage - Isolation | 1875VRMS @ 1 Second |
| Insertion Loss | 1dB Max @ 1kHz |
| Return Loss | 20dB Min @ 1kHz |
| Power Level | - |
| Operating Temperature | - |
| Approval Agency | UL1950, UL60950, EN60950 |
| Mounting Type | Through Hole |
| Size / Dimension | 0.886" L x 0.909" W (22.50mm x 23.10mm) |
| Height - Seated (Max) | 0.543" (13.80mm) |
| Termination Style | PC Pin |
Submit your RFQ for TTC-5009 and get a quote within 24 hours.
