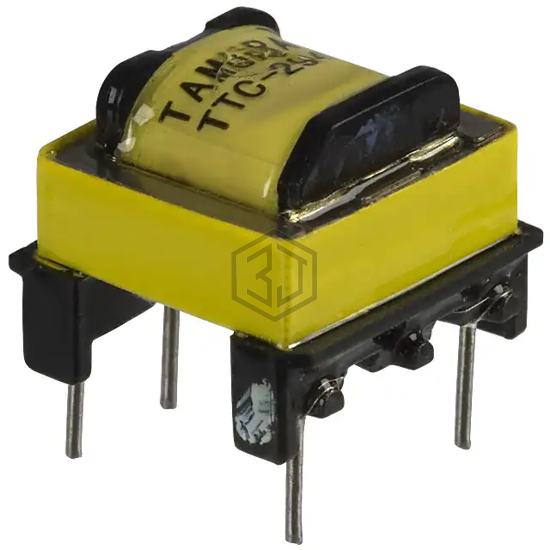

TTC-294 - Tamura - Audio Transformers

TTC-294

Tamura

TRANSFORM TELECOMM COUPL 600 OHM

TTC-294 is a Audio Transformers manufactured by Tamura. TRANSFORM TELECOMM COUPL 600 OHM. Key specifications: mounting type Through Hole, size / dimension 0.591" L x 0.571" W (15.00mm x 14.50mm), termination style PC Pin, frequency range 300Hz ~ 3.5kHz.

In Stock: 8,394

Product Attributes

AttributeValue
Product StatusActive
Turns Ratio - Primary:Secondary1:1
Impedance - Primary (Ohms)600
Impedance - Secondary (Ohms)600CT
DC Resistance (DCR) - Primary58Ohm
DC Resistance (DCR) - Secondary14Ohm, 62Ohm
Transformer TypeData/Voice Coupling
Frequency Range300Hz ~ 3.5kHz
Frequency Response±0.16dB
Voltage - Isolation1850V @ 1 Second
Insertion Loss1.2dB Max @ 1kHz
Return Loss-
Power Level-
Operating Temperature-
Approval AgencyUL1950
Mounting TypeThrough Hole
Size / Dimension0.591" L x 0.571" W (15.00mm x 14.50mm)
Height - Seated (Max)0.472" (12.00mm)
Termination StylePC Pin

Frequently Asked Questions

TTC-294 is a Audio Transformers manufactured by Tamura. TRANSFORM TELECOMM COUPL 600 OHM

The mounting type of TTC-294 is Through Hole.

The size of TTC-294 is 0.591" L x 0.571" W (15.00mm x 14.50mm).

The termination type of TTC-294 is PC Pin.
