TRANSF TELE 600/470 OHM 100MADC

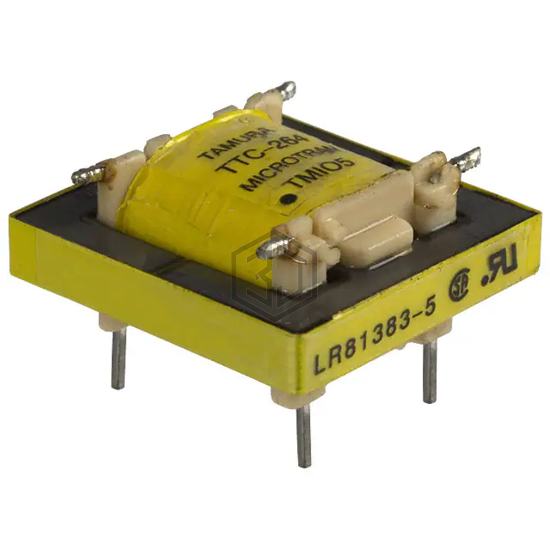

TTC-264 is a Audio Transformers manufactured by Tamura. TRANSF TELE 600/470 OHM 100MADC. Key specifications: mounting type Through Hole, size / dimension 0.945" L x 0.906" W (24.00mm x 23.00mm), termination style PC Pin, frequency range 300Hz ~ 3.5kHz.
In Stock: 1,917
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 1:1 |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 470 |
| DC Resistance (DCR) - Primary | 108Ohm |
| DC Resistance (DCR) - Secondary | 120Ohm |
| Transformer Type | Data/Voice Coupling |
| Frequency Range | 300Hz ~ 3.5kHz |
| Frequency Response | ±1dB ~ ±4dB |
| Voltage - Isolation | 1500VRMS @ 1 Minute |
| Insertion Loss | 2.5dB Max @ 1kHz |
| Return Loss | - |
| Power Level | -20dB ~ 4dB |
| Operating Temperature | - |
| Approval Agency | CSA-C22.2 No. 66-M1988, UL1459 |
| Mounting Type | Through Hole |
| Size / Dimension | 0.945" L x 0.906" W (24.00mm x 23.00mm) |
| Height - Seated (Max) | 0.472" (12.00mm) |
| Termination Style | PC Pin |
Submit your RFQ for TTC-264 and get a quote within 24 hours.
