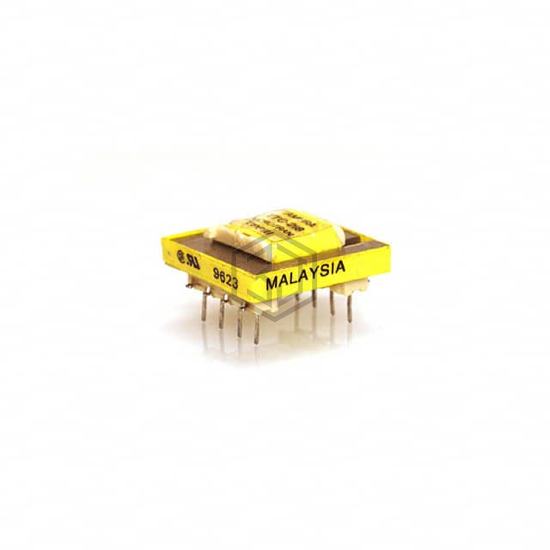

TTC-218 - Tamura - Audio Transformers

TTC-218

Tamura

TRANSF TELE COUP 600 OHM 50MADC

TTC-218 is a Audio Transformers manufactured by Tamura. TRANSF TELE COUP 600 OHM 50MADC. Key specifications: mounting type Through Hole, size / dimension 0.839" L x 0.760" W (21.30mm x 19.30mm), termination style PC Pin, frequency range 660Hz ~ 3.5kHz.

In Stock: 6,552

Product Attributes

AttributeValue
Product StatusObsolete
Turns Ratio - Primary:Secondary1:1
Impedance - Primary (Ohms)600
Impedance - Secondary (Ohms)600
DC Resistance (DCR) - Primary49Ohm
DC Resistance (DCR) - Secondary76Ohm
Transformer TypeData/Voice Coupling
Frequency Range660Hz ~ 3.5kHz
Frequency Response-1.8dB ~ 0.5dB
Voltage - Isolation1500VRMS @ 1 Minute
Insertion Loss1.8dB Max @ 2kHz
Return Loss-
Power Level-45dB ~ 7dB
Operating Temperature-
Approval AgencyCSA-C22.2 No. 66-M1988, UL1863
Mounting TypeThrough Hole
Size / Dimension0.839" L x 0.760" W (21.30mm x 19.30mm)
Height - Seated (Max)0.346" (8.80mm)
Termination StylePC Pin

Frequently Asked Questions

TTC-218 is a Audio Transformers manufactured by Tamura. TRANSF TELE COUP 600 OHM 50MADC

The mounting type of TTC-218 is Through Hole.

The size of TTC-218 is 0.839" L x 0.760" W (21.30mm x 19.30mm).

The termination type of TTC-218 is PC Pin.

Yes, TTC-218 is listed as Obsolete. Consider requesting a quote for alternative parts.
