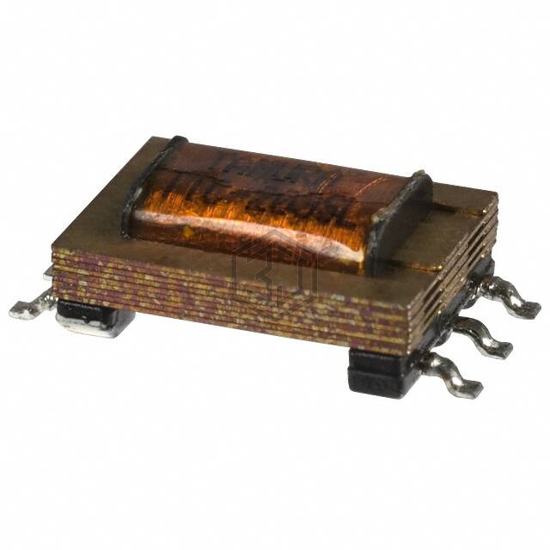

TTC-203SL - Tamura - Audio Transformers

TTC-203SL

Tamura

TRANSF TELE PCMCIA TOP MNT SMD

TTC-203SL is a Audio Transformers manufactured by Tamura. TRANSF TELE PCMCIA TOP MNT SMD. Key specifications: mounting type Surface Mount, size / dimension 0.330" L x 0.402" W (8.38mm x 10.20mm), termination style Gull Wing, frequency range 300Hz ~ 3.5kHz.

In Stock: 5,905

Product Attributes

AttributeValue
Product StatusObsolete
Turns Ratio - Primary:Secondary1:1
Impedance - Primary (Ohms)600
Impedance - Secondary (Ohms)346
DC Resistance (DCR) - Primary127Ohm
DC Resistance (DCR) - Secondary150Ohm
Transformer TypeData/Voice Coupling
Frequency Range300Hz ~ 3.5kHz
Frequency Response-0.35dB ~ 0.15dB
Voltage - Isolation1000VRMS @ 1 Minute
Insertion Loss2.7dB @ 1kHz
Return Loss25dB Min @ 300Hz ~ 3.5kHz
Power Level10mW
Operating Temperature-
Approval AgencyCSA-C22.2 No. 950-M89, UL1459, UL1950
Mounting TypeSurface Mount
Size / Dimension0.330" L x 0.402" W (8.38mm x 10.20mm)
Height - Seated (Max)0.164" (4.16mm)
Termination StyleGull Wing

Frequently Asked Questions

TTC-203SL is a Audio Transformers manufactured by Tamura. TRANSF TELE PCMCIA TOP MNT SMD

The mounting type of TTC-203SL is Surface Mount.

The size of TTC-203SL is 0.330" L x 0.402" W (8.38mm x 10.20mm).

The termination type of TTC-203SL is Gull Wing.

Yes, TTC-203SL is listed as Obsolete. Consider requesting a quote for alternative parts.
