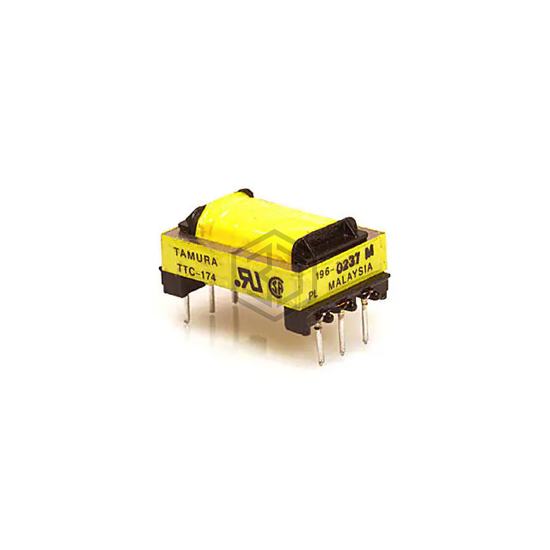

TTC-174 - Tamura - Audio Transformers

TTC-174

Tamura

TRANSF TELE 600:600/600 50MADC

TTC-174 is a Audio Transformers manufactured by Tamura. TRANSF TELE 600:600/600 50MADC. Key specifications: mounting type Through Hole, size / dimension 0.799" L x 1.201" W (20.30mm x 30.50mm), termination style PC Pin, frequency range 300Hz ~ 3.5kHz.

In Stock: 3,773

Product Attributes

AttributeValue
Product StatusActive
Turns Ratio - Primary:Secondary1:1
Impedance - Primary (Ohms)600
Impedance - Secondary (Ohms)1.2k, 600/600
DC Resistance (DCR) - Primary75Ohm
DC Resistance (DCR) - Secondary170Ohm
Transformer TypeData/Voice Coupling
Frequency Range300Hz ~ 3.5kHz
Frequency Response-1.6dB ~ 0.3dB
Voltage - Isolation1500VRMS @ 1 Minute
Insertion Loss1.6dB Max @ 1kHz
Return Loss14dB Min @ 1kHz
Power Level-45dB ~ 10dB
Operating Temperature-
Approval AgencyCSA-C22.2 No. 66-M1988, UL1863
Mounting TypeThrough Hole
Size / Dimension0.799" L x 1.201" W (20.30mm x 30.50mm)
Height - Seated (Max)0.500" (12.70mm)
Termination StylePC Pin

Frequently Asked Questions

TTC-174 is a Audio Transformers manufactured by Tamura. TRANSF TELE 600:600/600 50MADC

The mounting type of TTC-174 is Through Hole.

The size of TTC-174 is 0.799" L x 1.201" W (20.30mm x 30.50mm).

The termination type of TTC-174 is PC Pin.
