TRANSF TELE COUP 10K:10K 0MADC

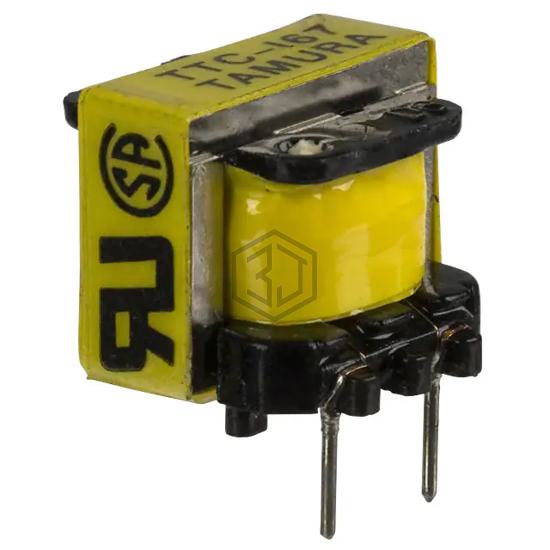

TTC-167 is a Audio Transformers manufactured by Tamura. TRANSF TELE COUP 10K:10K 0MADC. Key specifications: mounting type Through Hole, size / dimension 0.610" L x 0.689" W (15.50mm x 17.50mm), termination style PC Pin, frequency range 300Hz ~ 4kHz.
In Stock: 248
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 1:1 |
| Impedance - Primary (Ohms) | 10k |
| Impedance - Secondary (Ohms) | 10k |
| DC Resistance (DCR) - Primary | 330Ohm |
| DC Resistance (DCR) - Secondary | 420Ohm |
| Transformer Type | Data/Voice Coupling |
| Frequency Range | 300Hz ~ 4kHz |
| Frequency Response | ±1dB |
| Voltage - Isolation | 1000VRMS @ 1 Minute |
| Insertion Loss | 1.7dB Max @ 1kHz |
| Return Loss | - |
| Power Level | - |
| Operating Temperature | - |
| Approval Agency | CSA-C22.2 No. 66-M1988, UL1863 |
| Mounting Type | Through Hole |
| Size / Dimension | 0.610" L x 0.689" W (15.50mm x 17.50mm) |
| Height - Seated (Max) | 0.551" (14.00mm) |
| Termination Style | PC Pin |
Submit your RFQ for TTC-167 and get a quote within 24 hours.
