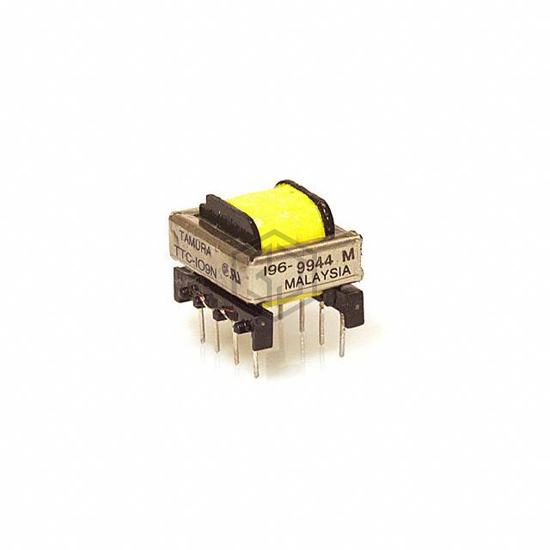

TTC-109N - Tamura - Audio Transformers

TTC-109N

Tamura

TRANSF TELE COUP 600 OHM 90MADC

TTC-109N is a Audio Transformers manufactured by Tamura. TRANSF TELE COUP 600 OHM 90MADC. Key specifications: mounting type Through Hole, size / dimension 0.823" L x 0.752" W (20.90mm x 19.10mm), termination style PC Pin, frequency range 660Hz ~ 3.5kHz.

In Stock: 1,805

Product Attributes

AttributeValue
Product StatusObsolete
Turns Ratio - Primary:Secondary1:1
Impedance - Primary (Ohms)600
Impedance - Secondary (Ohms)600
DC Resistance (DCR) - Primary71Ohm
DC Resistance (DCR) - Secondary117Ohm
Transformer TypeData/Voice Coupling
Frequency Range660Hz ~ 3.5kHz
Frequency Response-1dB ~ 0.7dB
Voltage - Isolation1500VRMS @ 1 Minute
Insertion Loss3dB Max @ 660Hz ~ 800Hz, 2.5dB Max @ 800Hz @ 3.5kHz
Return Loss-
Power Level-45dB ~ 10dB
Operating Temperature-
Approval AgencyCSA-C22.2 No. 66-M1988, UL1862
Mounting TypeThrough Hole
Size / Dimension0.823" L x 0.752" W (20.90mm x 19.10mm)
Height - Seated (Max)0.630" (16.00mm)
Termination StylePC Pin

Frequently Asked Questions

TTC-109N is a Audio Transformers manufactured by Tamura. TRANSF TELE COUP 600 OHM 90MADC

The mounting type of TTC-109N is Through Hole.

The size of TTC-109N is 0.823" L x 0.752" W (20.90mm x 19.10mm).

The termination type of TTC-109N is PC Pin.

Yes, TTC-109N is listed as Obsolete. Consider requesting a quote for alternative parts.
