TRANSF TELE FCC68 600:600 0 MADC

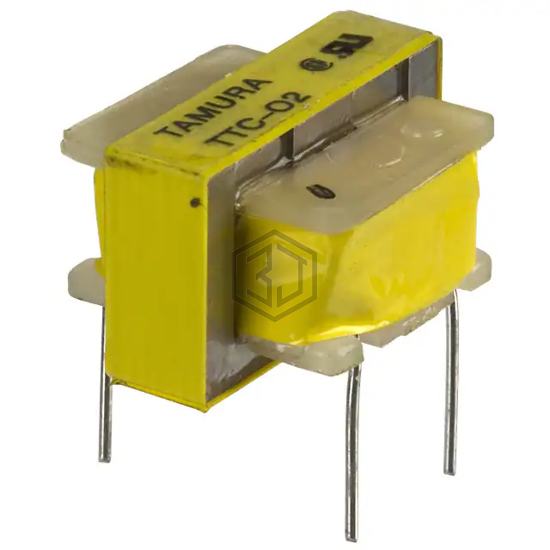

TTC-02 is a Audio Transformers manufactured by Tamura. TRANSF TELE FCC68 600:600 0 MADC. Key specifications: mounting type Through Hole, size / dimension 0.799" L x 0.650" W (20.30mm x 16.50mm), termination style PC Pin, frequency range 300Hz ~ 3.5kHz.
In Stock: 5,061
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 1:1 |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 600 |
| DC Resistance (DCR) - Primary | 72Ohm |
| DC Resistance (DCR) - Secondary | 90Ohm |
| Transformer Type | Data/Voice Coupling |
| Frequency Range | 300Hz ~ 3.5kHz |
| Frequency Response | ±0.5dB |
| Voltage - Isolation | 1500VRMS @ 1 Minute |
| Insertion Loss | 1.5dB Max @ 1kHz |
| Return Loss | - |
| Power Level | -45dB ~ 7dB |
| Operating Temperature | - |
| Approval Agency | CSA-C22.2 No. 66-M1988, UL1459 |
| Mounting Type | Through Hole |
| Size / Dimension | 0.799" L x 0.650" W (20.30mm x 16.50mm) |
| Height - Seated (Max) | 0.488" (12.40mm) |
| Termination Style | PC Pin |
