TRANSF 600 OHM SPLIT OMA -1.0 D

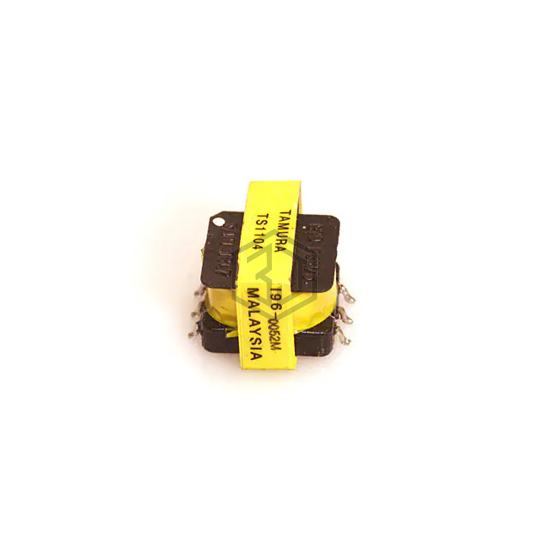

TS1104 is a Audio Transformers manufactured by Tamura. TRANSF 600 OHM SPLIT OMA -1.0 D. Key specifications: mounting type Surface Mount, size / dimension 0.791" L x 0.689" W (20.09mm x 17.50mm), termination style Gull Wing, frequency range 300Hz ~ 3.5kHz.
In Stock: 2,964
| Attribute | Value |
|---|---|
| Product Status | Active |
| Turns Ratio - Primary:Secondary | 1:1.06 |
| Impedance - Primary (Ohms) | 600 |
| Impedance - Secondary (Ohms) | 600 |
| DC Resistance (DCR) - Primary | 46Ohm |
| DC Resistance (DCR) - Secondary | 63Ohm |
| Transformer Type | Data/Voice Coupling |
| Frequency Range | 300Hz ~ 3.5kHz |
| Frequency Response | ±0.5dB |
| Voltage - Isolation | 1500VRMS @ 1 Minute |
| Insertion Loss | 1.5dB Max @ 1kHz |
| Return Loss | 26dB Min @ 1kHz |
| Power Level | -45dB ~ 7dB |
| Operating Temperature | - |
| Approval Agency | CSA-C22.2 No. 950-M89, UL1459, UL1950 |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.791" L x 0.689" W (20.09mm x 17.50mm) |
| Height - Seated (Max) | 0.500" (12.70mm) |
| Termination Style | Gull Wing |
Submit your RFQ for TS1104 and get a quote within 24 hours.
