CURR SENSE XFMR 1:20 SMD

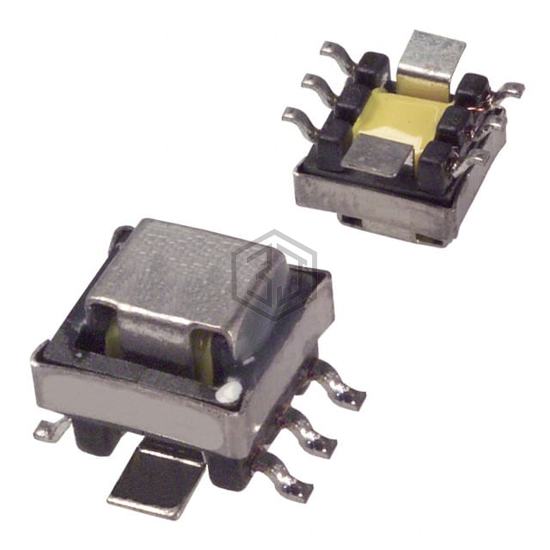

TCS-01 is a Current Sense Transformers manufactured by Tamura. CURR SENSE XFMR 1:20 SMD. Key specifications: mounting type Surface Mount, size / dimension 0.276" L x 0.331" W (7.00mm x 8.40mm), termination style Gull Wing, frequency range 250kHz Min.
In Stock: 1,663
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| Frequency Range | 250kHz Min |
| Type | Invasive |
| Current Rating (Amps) | - |
| Inductance | 80 µH |
| ET (Volt-Time) | - |
| Turns Ratio - Primary:Secondary | 1:20 |
| Current Ratio | - |
| DC Resistance (DCR) | 6mOhm Primary, 550mOhm Secondary |
| Ratings | - |
| Mounting Type | Surface Mount |
| Size / Dimension | 0.276" L x 0.331" W (7.00mm x 8.40mm) |
| Height - Seated (Max) | 0.205" (5.20mm) |
| Termination Style | Gull Wing |
Submit your RFQ for TCS-01 and get a quote within 24 hours.
