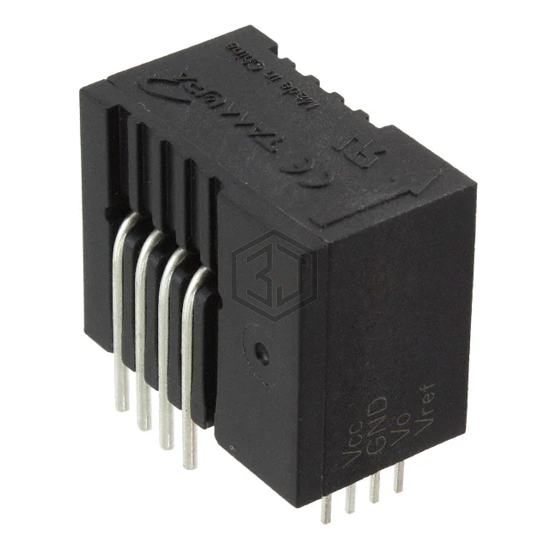

F03P006S05L
SENSOR
F03P006S05L is a Current Sensors manufactured by Tamura. SENSOR. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 105°C, voltage - supply 4.75V ~ 5.25V, package / case Module.
In Stock: 630
Product Attributes
| Attribute | Value |
|---|---|
| Product Status | Active |
| For Measuring | AC |
| Sensor Type | Flux Gate, Closed Loop |
| Current - Sensing | 6A |
| Number of Channels | 1 |
| Output | Ratiometric, Voltage |
| Sensitivity | 104.2mV/A |
| Frequency | 300kHz |
| Linearity | ±0.1% |
| Accuracy | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 0.3µs |
| Current - Supply (Max) | 25mA |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Supplier Device Package | - |
Frequently Asked Questions
F03P006S05L is a Current Sensors manufactured by Tamura. SENSOR
The mounting type of F03P006S05L is Through Hole.
The operating temperature range of F03P006S05L is -40°C ~ 105°C.
The supply voltage of F03P006S05L is 4.75V ~ 5.25V.
The sensing specification of F03P006S05L is Flux Gate, Closed Loop.
