Taiwan Semiconductor Corporation
50NS, 30A, 600V, HIGH EFFICIENT

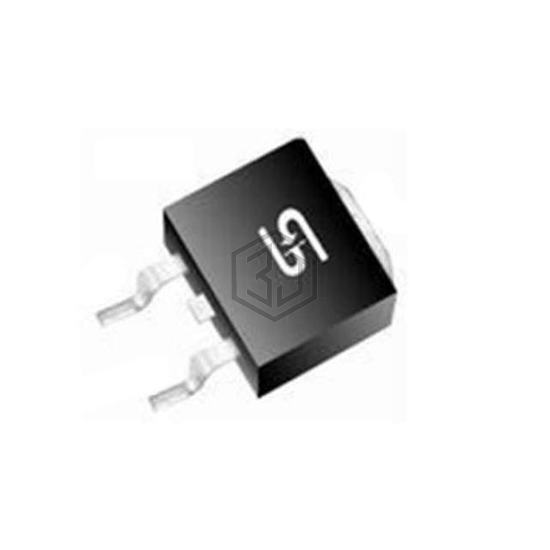

UGS30JH is a Diodes - Rectifiers - Single manufactured by Taiwan Semiconductor Corporation. 50NS, 30A, 600V, HIGH EFFICIENT. Key specifications: mounting type Surface Mount, package / case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB.
In Stock: 729
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 600 V |
| Current - Average Rectified (Io) | 30A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 2 V @ 30 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 50 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 600 V |
| Capacitance @ Vr, F | 128pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package | TO-263AB (D²PAK) |
| Operating Temperature - Junction | -55°C ~ 150°C |
Submit your RFQ for UGS30JH and get a quote within 24 hours.
