Taiwan Semiconductor Corporation
10A, 45V, SCHOTTKY RECTIFIER

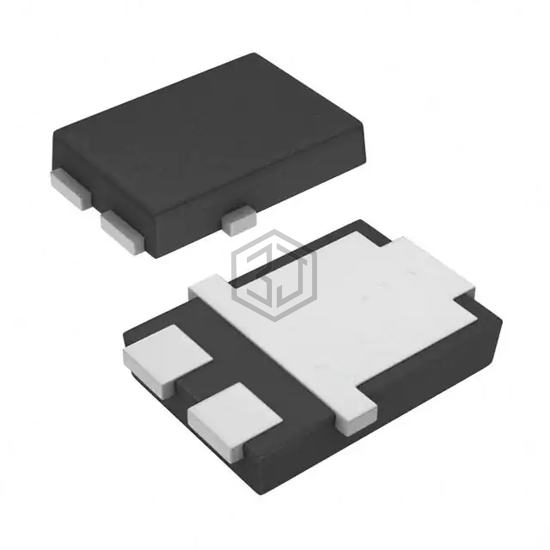

TSUP10M45SH is a Diodes - Rectifiers - Single manufactured by Taiwan Semiconductor Corporation. 10A, 45V, SCHOTTKY RECTIFIER. Key specifications: mounting type Surface Mount, package / case TO-277, 3-PowerDFN.
In Stock: 5,016
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 45 V |
| Current - Average Rectified (Io) | 10A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 600 mV @ 10 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 200 µA @ 45 V |
| Capacitance @ Vr, F | 1099pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | TO-277, 3-PowerDFN |
| Supplier Device Package | SMPC4.6U |
| Operating Temperature - Junction | -55°C ~ 175°C |
Submit your RFQ for TSUP10M45SH and get a quote within 24 hours.
