Taiwan Semiconductor Corporation

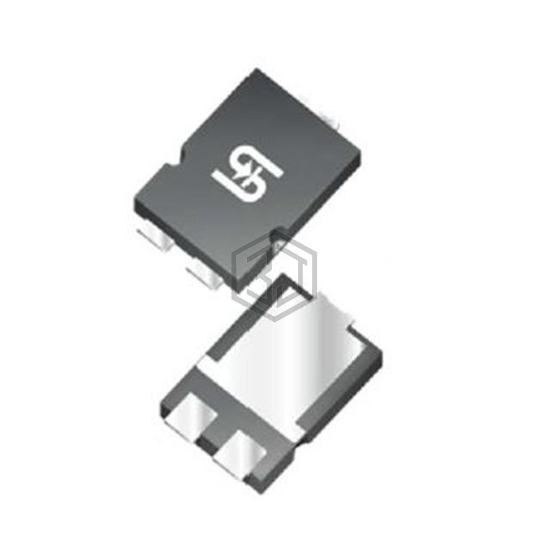

DIODE SCHOTTKY 120V 12A TO277A
TSP12U120S is a Diodes - Rectifiers - Single manufactured by Taiwan Semiconductor Corporation. DIODE SCHOTTKY 120V 12A TO277A. Key specifications: mounting type Surface Mount, package / case TO-277, 3-PowerDFN.
In Stock: 44,589
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Schottky |
| Voltage - DC Reverse (Vr) (Max) | 120 V |
| Current - Average Rectified (Io) | 12A |
| Voltage - Forward (Vf) (Max) @ If | 780 mV @ 12 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | - |
| Current - Reverse Leakage @ Vr | 500 µA @ 120 V |
| Capacitance @ Vr, F | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-277, 3-PowerDFN |
| Supplier Device Package | TO-277A (SMPC) |
| Operating Temperature - Junction | -55°C ~ 150°C |
Submit your RFQ for TSP12U120S and get a quote within 24 hours.
