Taiwan Semiconductor Corporation

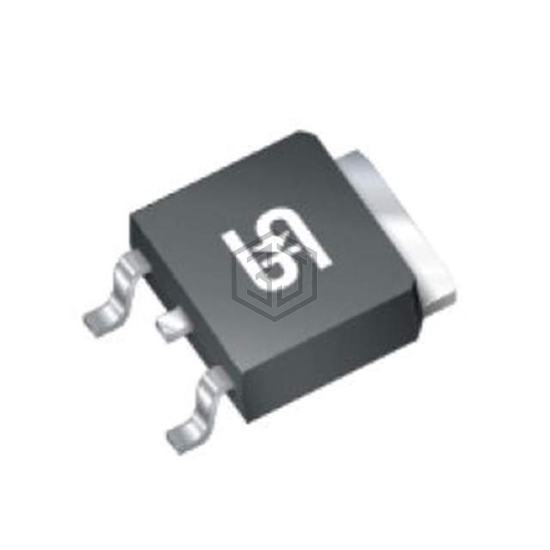

MOSFET N-CHANNEL 60V 30A TO252
TSM340N06CP ROG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CHANNEL 60V 30A TO252. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.
In Stock: 31
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 30A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 34mOhm @ 15A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 16.6 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1180 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 66W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252, (D-Pak) |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
Submit your RFQ for TSM340N06CP ROG and get a quote within 24 hours.
