Taiwan Semiconductor Corporation

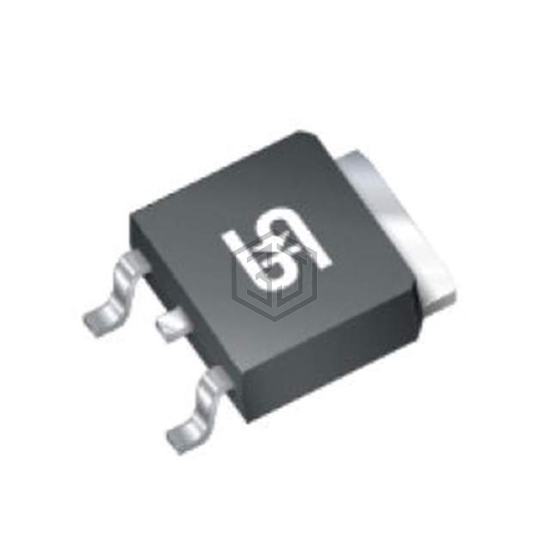

MOSFET N-CHANNEL 600V 2A TO252
TSM2N60ECP ROG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CHANNEL 600V 2A TO252. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case TO-252-3, DPak (2 Leads + Tab), SC-63.
In Stock: 2,487
| Attribute | Value |
|---|---|
| Product Status | Obsolete |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 600 V |
| Current - Continuous Drain (Id) @ 25°C | 2A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 4Ohm @ 1A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 9.5 nC @ 10 V |
| Vgs (Max) | ±30V |
| Input Capacitance (Ciss) (Max) @ Vds | 362 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 52.1W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | TO-252, (D-Pak) |
| Package / Case | TO-252-3, DPak (2 Leads + Tab), SC-63 |
Submit your RFQ for TSM2N60ECP ROG and get a quote within 24 hours.
