Taiwan Semiconductor Corporation
-20V, -6.5A, SINGLE P-CHANNEL PO

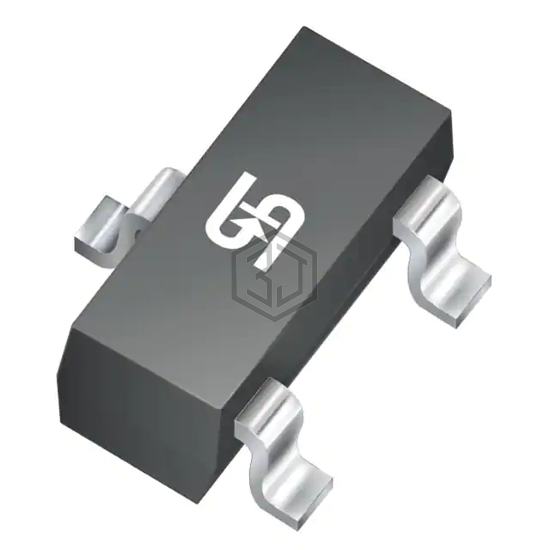

TSM260P02CX RFG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. -20V, -6.5A, SINGLE P-CHANNEL PO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), supplier device package SOT-23.
In Stock: 28
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 6.5A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 1.8V, 2.5V, 4.5V |
| Rds On (Max) @ Id, Vgs | 26mOhm @ 5A, 4.5V |
| Vgs(th) (Max) @ Id | 1V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 19.5 nC @ 4.5 V |
| Vgs (Max) | ±10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1670 pF @ 15 V |
| FET Feature | Standard |
| Power Dissipation (Max) | 1.56W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-23 |
| Package / Case | - |
Submit your RFQ for TSM260P02CX RFG and get a quote within 24 hours.
