Taiwan Semiconductor Corporation
MOSFET N-CHANNEL 30V 9A 8SOP

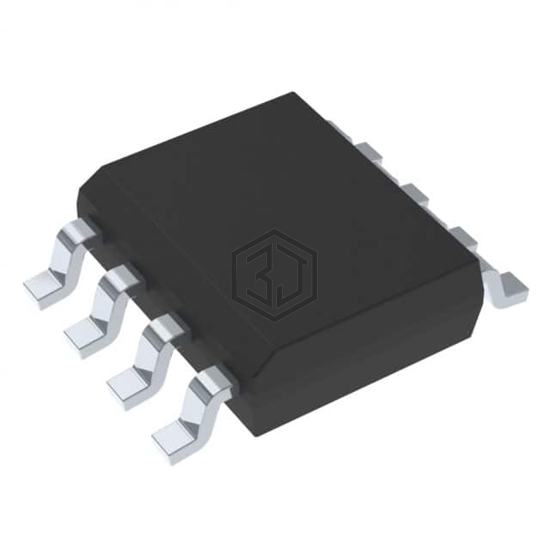

TSM180N03CS RLG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CHANNEL 30V 9A 8SOP. Key specifications: mounting type Surface Mount, operating temperature 150°C (TJ), package / case 8-SOIC (0.154", 3.90mm Width).
In Stock: 4,739
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 9A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 18mOhm @ 8A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 14 nC @ 4.5 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 345 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Tc) |
| Operating Temperature | 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-SOP |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
Submit your RFQ for TSM180N03CS RLG and get a quote within 24 hours.
