Taiwan Semiconductor Corporation

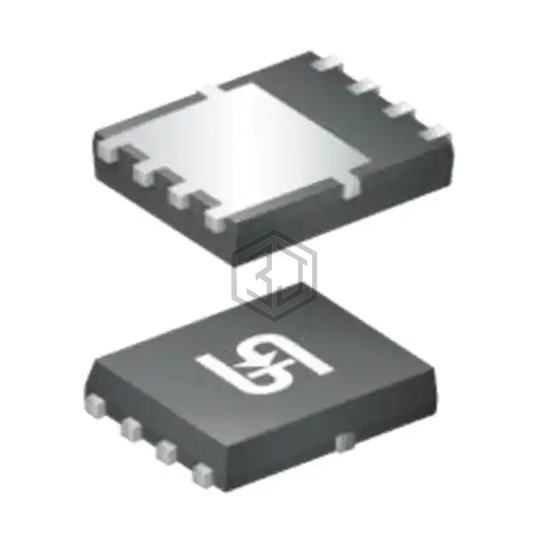

MOSFET N-CH 60V 16A/104A PDFN56U
TQM050NB06CR RLG is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. MOSFET N-CH 60V 16A/104A PDFN56U. Key specifications: mounting type Surface Mount, Wettable Flank, operating temperature -55°C ~ 175°C (TJ), package / case 8-PowerTDFN.
In Stock: 4,287
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 60 V |
| Current - Continuous Drain (Id) @ 25°C | 16A (Ta), 104A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 7V, 10V |
| Rds On (Max) @ Id, Vgs | 5mOhm @ 16A, 10V |
| Vgs(th) (Max) @ Id | 3.8V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 114 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 6904 pF @ 30 V |
| FET Feature | - |
| Power Dissipation (Max) | 3.1W (Ta), 136W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount, Wettable Flank |
| Supplier Device Package | 8-PDFNU (5x6) |
| Package / Case | 8-PowerTDFN |
Submit your RFQ for TQM050NB06CR RLG and get a quote within 24 hours.
