Taiwan Semiconductor Corporation
500NS, 1A, 1000V, FAST RECOVERY

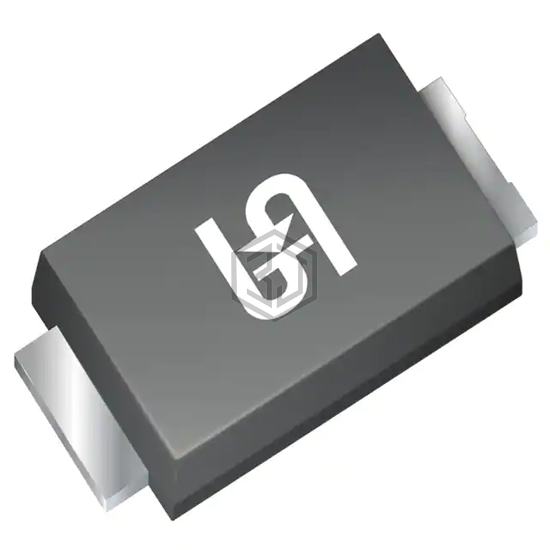

RS1MAL is a Diodes - Rectifiers - Single manufactured by Taiwan Semiconductor Corporation. 500NS, 1A, 1000V, FAST RECOVERY. Key specifications: mounting type Surface Mount, package / case DO-221AC, SMA Flat Leads.
In Stock: 3,816
| Attribute | Value |
|---|---|
| Product Status | Active |
| Diode Type | Standard |
| Voltage - DC Reverse (Vr) (Max) | 1000 V |
| Current - Average Rectified (Io) | 1A (DC) |
| Voltage - Forward (Vf) (Max) @ If | 1.3 V @ 1 A |
| Speed | Fast Recovery =< 500ns, > 200mA (Io) |
| Reverse Recovery Time (trr) | 500 ns |
| Current - Reverse Leakage @ Vr | 1 µA @ 1000 V |
| Capacitance @ Vr, F | 7pF @ 4V, 1MHz |
| Mounting Type | Surface Mount |
| Package / Case | DO-221AC, SMA Flat Leads |
| Supplier Device Package | Thin SMA |
| Operating Temperature - Junction | -55°C ~ 150°C |
Submit your RFQ for RS1MAL and get a quote within 24 hours.
