Taiwan Semiconductor Corporation
100V, 0.16A, SINGLE N-CHANNEL PO

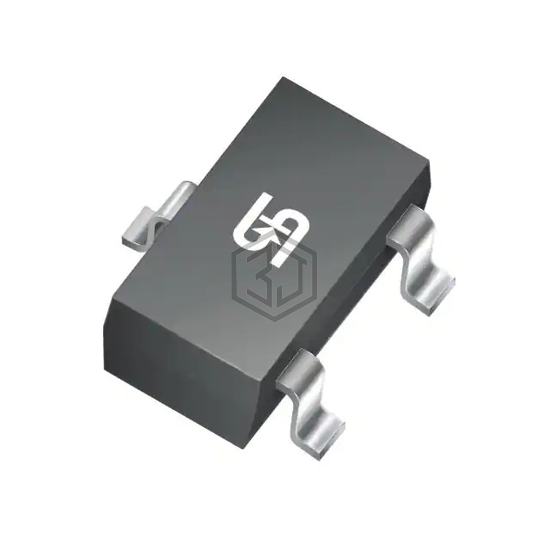

BSS123W is a Transistors - FETs, MOSFETs - Single manufactured by Taiwan Semiconductor Corporation. 100V, 0.16A, SINGLE N-CHANNEL PO. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 150°C (TJ), package / case SC-70, SOT-323.
In Stock: 3,065
| Attribute | Value |
|---|---|
| Product Status | Active |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 160mA (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 5Ohm @ 160mA, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 2 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 30 pF @ 50 V |
| FET Feature | - |
| Power Dissipation (Max) | 298mW (Ta) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | SOT-323 |
| Package / Case | SC-70, SOT-323 |
Submit your RFQ for BSS123W and get a quote within 24 hours.
