CONDUCTIVE POLYMER SOLID CAPACIT

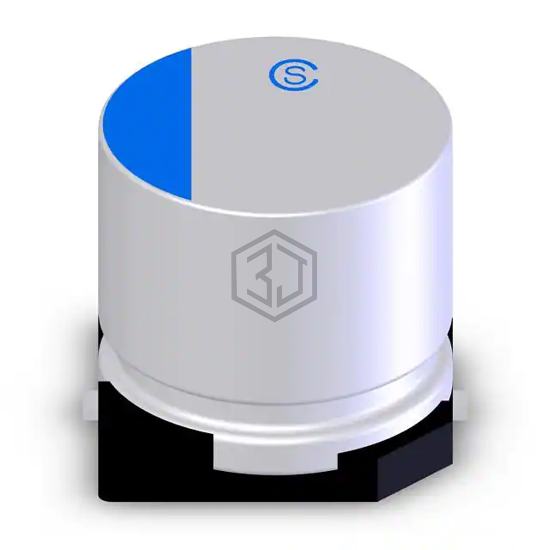

VSP1C271MCB6309 is a Aluminum - Polymer Capacitors manufactured by Chinsan (Elite). CONDUCTIVE POLYMER SOLID CAPACIT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 8,647
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 9mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.374" (9.50mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| VSG1C271MCB8067 | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 85% | View |
| 16SVT270M | Panasonic Electronic Components | CAP ALUM POLY 270UF 20% 16V SMD | 85% | View |
| PCV1D271MCL2GS | Nichicon | CAP ALUM POLY 270UF 20% 20V SMD | 82% | View |
| 875115457008 | Würth Elektronik | CAP ALUM POLY 270UF 20% 20V SMD | 79% | View |
| RPS1A271MCN1GS | Nichicon | CAP ALUM POLY 270UF 20% 10V SMD | 67% | View |
| 875075661009 | Würth Elektronik | CAP ALUM POLY 270UF 20% 35V SMD | 65% | View |
Submit your RFQ for VSP1C271MCB6309 and get a quote within 24 hours.
