CONDUCTIVE POLYMER SOLID CAPACIT

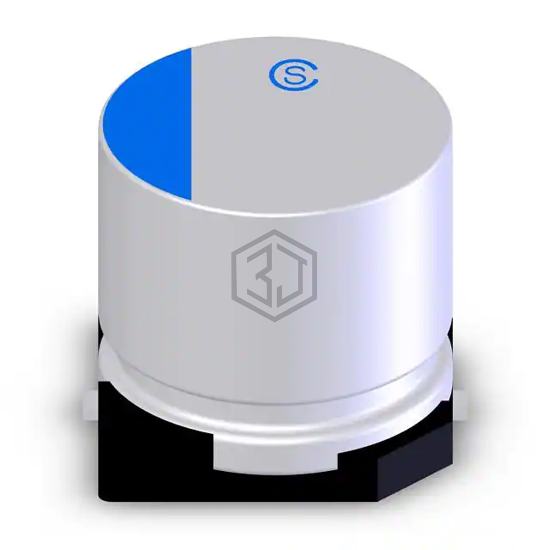

VSP0J221MCB6343L is a Aluminum - Polymer Capacitors manufactured by Chinsan (Elite). CONDUCTIVE POLYMER SOLID CAPACIT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 6.3 V, package / case Radial, Can - SMD.
In Stock: 6,853
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 220 µF |
| Tolerance | ±20% |
| Voltage - Rated | 6.3 V |
| ESR (Equivalent Series Resistance) | 18mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.185" (4.70mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APXA6R3ARA221MH70G | United Chemi-Con | CAP ALUM POLY 220UF 20% 6.3V SMD | 100% | View |
| PVM-10V221MG70E-R2 | Elna America | CAP ALUM POLY 220UF 20% 10V SMD | 79% | View |
| APXC4R0ARA221MF60G | United Chemi-Con | CAP ALUM POLY 220UF 20% 4V SMD | 77% | View |
| APA0607221M010R | KYOCERA AVX | CAP ALUM POLY 220UF 20% 10V SMD | 75% | View |
| APXE160ARA221MJ80G | United Chemi-Con | CAP ALUM POLY 220UF 20% 16V SMD | 67% | View |
| APXA2R5ARA221MF60G | United Chemi-Con | CAP ALUM POLY 220UF 20% 2.5V SMD | 66% | View |
Submit your RFQ for VSP0J221MCB6343L and get a quote within 24 hours.
