CONDUCTIVE POLYMER SOLID CAPACIT

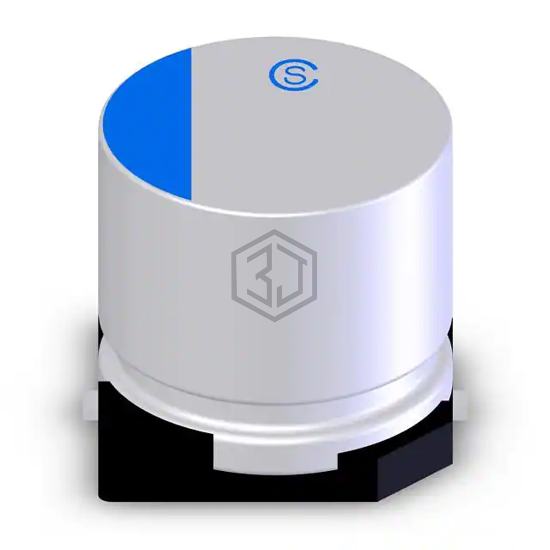

VSG1E270MCB6357L is a Aluminum - Polymer Capacitors manufactured by Chinsan (Elite). CONDUCTIVE POLYMER SOLID CAPACIT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 25 V, package / case Radial, Can - SMD.
In Stock: 5,235
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 27 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | 40mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 2.1 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| APXC160ARA270ME60G | United Chemi-Con | CAP ALUM POLY 27UF 20% 16V SMD | 72% | View |
| PCX1V270MCS1GS | Nichicon | CAP ALUM POLY 27UF 20% 35V SMD | 71% | View |
| PCX1V270MCL1GS | Nichicon | CAP ALUM POLY 27UF 20% 35V SMD | 71% | View |
| PCV1J270MCL1GS | Nichicon | CAP ALUM POLY 27UF 20% 63V SMD | 70% | View |
| MAL218597104E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 27UF 20% 50V SMD | 67% | View |
| A768KE276M1JLAE054 | KEMET | CAP ALUM POLY 27UF 20% 63V SMD | 53% | View |
Submit your RFQ for VSG1E270MCB6357L and get a quote within 24 hours.
