CONDUCTIVE POLYMER SOLID CAPACIT

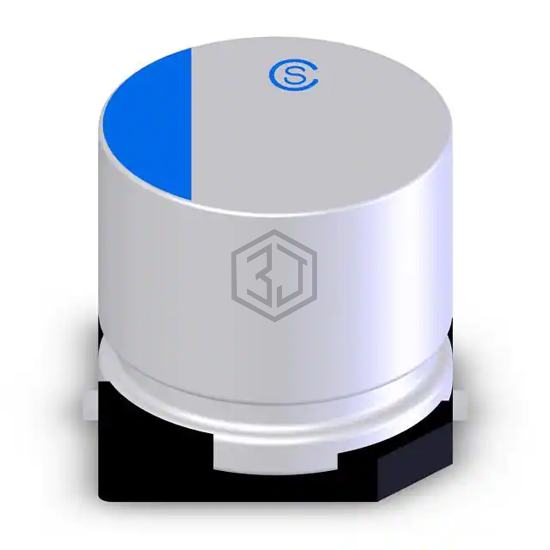

VSG1C271MCB8067F5 is a Aluminum - Polymer Capacitors manufactured by Chinsan (Elite). CONDUCTIVE POLYMER SOLID CAPACIT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 16 V, package / case Radial, Can - SMD.
In Stock: 5,015
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 270 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 864 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.276" (7.00mm) |
| Surface Mount Land Size | 0.327" L x 0.327" W (8.30mm x 8.30mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 16SVF270M | Panasonic Electronic Components | CAP ALUM POLY 270UF 20% 16V SMD | 94% | View |
| PCX1C271MCS1GS | Nichicon | CAP ALUM POLY 270UF 20% 16V SMD | 68% | View |
| APXJ160ARA271MF80J | United Chemi-Con | CAP ALUM POLYM 270UF 20% 16V SMD | 64% | View |
| RHA1C271MCN1GS | Nichicon | CAP ALUM POLY 270UF 20% 16V SMD | 64% | View |
| PCJ1C271MCL1GS | Nichicon | CAP ALUM POLY 270UF 20% 16V SMD | 64% | View |
| 875075355003 | Würth Elektronik | CAP ALUM POLY 270UF 20% 16V SMD | 64% | View |
