CONDUCTIVE POLYMER SOLID CAPACIT

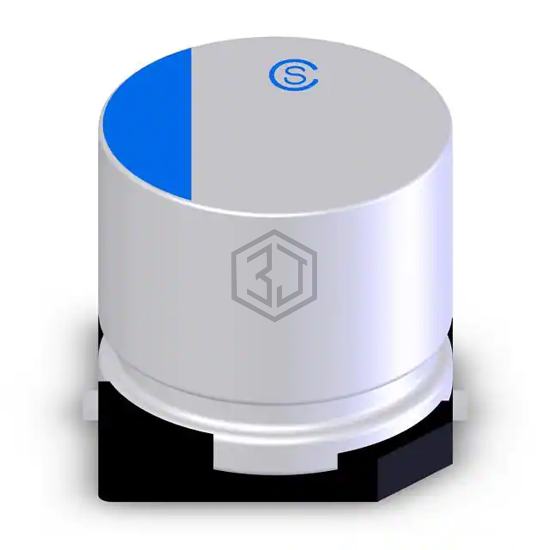

VSG0E561MCB6357E is a Aluminum - Polymer Capacitors manufactured by Chinsan (Elite). CONDUCTIVE POLYMER SOLID CAPACIT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can - SMD.
In Stock: 4,841
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 16mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL218097254E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM POLY 560UF 20% 2.5V SMD | 100% | View |
| PCJ0E561MCL1GS | Nichicon | CAP ALUM POLY 560UF 20% 2.5V SMD | 95% | View |
| APXN2R5ARA561MF61G | United Chemi-Con | CAP ALUM POLY 560UF 20% 2.5V SMD | 93% | View |
| 4SVPT560M | Panasonic Electronic Components | CAP ALUM POLY 560UF 20% 4V SMD | 78% | View |
| APXS4R0ARA561MH70G | United Chemi-Con | CAP ALUM POLY 560UF 20% 4V SMD | 78% | View |
| PCG1A561MCL1GS | Nichicon | CAP ALUM POLY 560UF 20% 10V SMD | 71% | View |
