CONDUCTIVE POLYMER SOLID CAPACIT

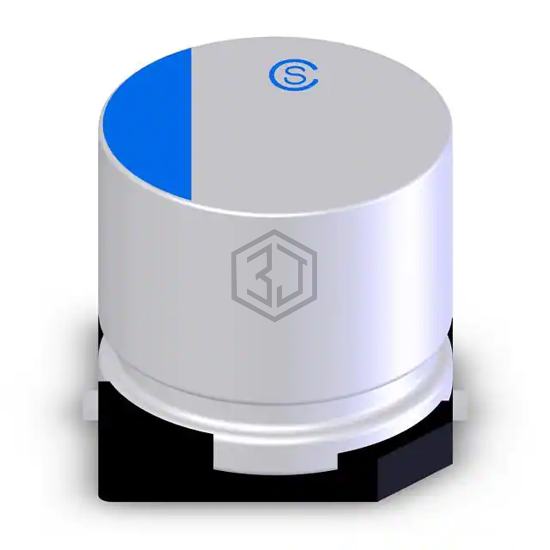

VSE0E561MCB6357 is a Aluminum - Polymer Capacitors manufactured by Chinsan (Elite). CONDUCTIVE POLYMER SOLID CAPACIT. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 2.5 V, package / case Radial, Can - SMD.
In Stock: 3,863
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 2.5 V |
| ESR (Equivalent Series Resistance) | 16mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 3.5 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.236" (6.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 2R5SVT560M | Panasonic Electronic Components | CAP ALUM POLY 560UF 20% 2.5V SMD | 100% | View |
| APXE2R5ARA561MF80G | United Chemi-Con | CAP ALUM POLY 560UF 20% 2.5V SMD | 99% | View |
| A765EK567M0ELAE020 | KEMET | CAP ALUM POLY 560UF 20% 2.5V SMD | 97% | View |
| APXF2R5ARA561MF80G | United Chemi-Con | CAP ALUM POLY 560UF 20% 2.5V SMD | 94% | View |
| RPS0G561MCN1GS | Nichicon | CAP ALUM POLY 560UF 20% 4V SMD | 72% | View |
| APXG160ARA561MHA0G | United Chemi-Con | CAP ALUM POLY 560UF 20% 16V SMD | 68% | View |
Submit your RFQ for VSE0E561MCB6357 and get a quote within 24 hours.
