CONDUCTIVE POLYMER SOLID CAPACIT

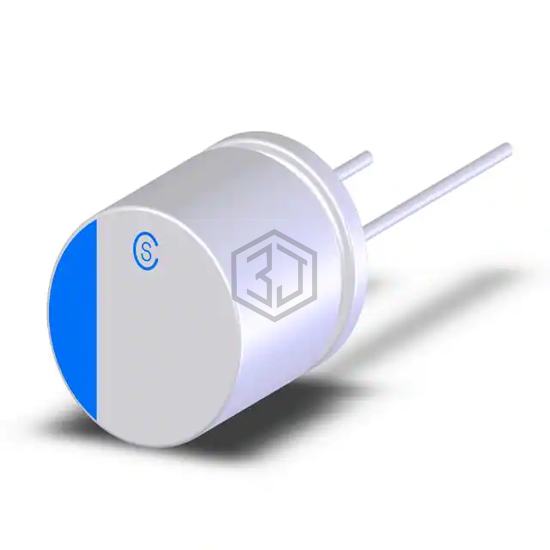

UPE1D561MNN1012U is a Aluminum - Polymer Capacitors manufactured by Chinsan (Elite). CONDUCTIVE POLYMER SOLID CAPACIT. Key specifications: mounting type Through Hole, operating temperature -55°C ~ 105°C, voltage - rated 20 V, package / case Radial, Can.
In Stock: 1,673
| Attribute | Value |
|---|---|
| Product Status | Active |
| Type | Polymer |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 20 V |
| ESR (Equivalent Series Resistance) | 12mOhm |
| Lifetime @ Temp. | 5000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Features | - |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 5.4 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.531" (13.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| 20SEPF560M | Panasonic Electronic Components | CAP ALUM POLY 560UF 20% 20V T/H | 100% | View |
| 20SEPF560M+T | Panasonic Electronic Components | CAP ALUM POLY 560UF 20% 20V T/H | 100% | View |
| APSG160ELL561MHB5S | United Chemi-Con | CAP ALUM POLY 560UF 20% 16V T/H | 88% | View |
| UPR0J561MCG6308E | Chinsan (Elite) | CONDUCTIVE POLYMER SOLID CAPACIT | 70% | View |
| RL80J561MDNASQ | Nichicon | CAP ALUM POLY 560UF 20% 6.3V T/H | 70% | View |
| RR70G561MDN1KX | Nichicon | CAP ALUM POLY 560UF 20% 4V T/H | 70% | View |
Submit your RFQ for UPE1D561MNN1012U and get a quote within 24 hours.
