ALUMINUM ELECTROLYTIC CAPACITORS

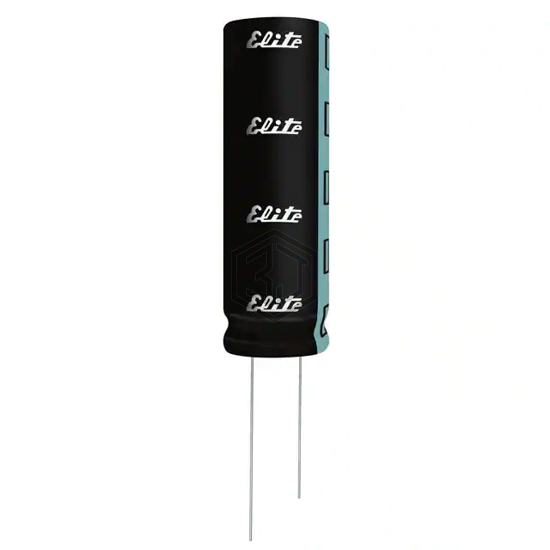

SW2G560MNN1230 is a Aluminum Electrolytic Capacitors manufactured by Chinsan (Elite). ALUMINUM ELECTROLYTIC CAPACITORS. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 400 V, package / case Radial, Can.
In Stock: 2,139
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 56 µF |
| Tolerance | ±20% |
| Voltage - Rated | 400 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 450 mA @ 120 Hz |
| Ripple Current @ High Frequency | 675 mA @ 100 kHz |
| Impedance | 1.56 Ohms |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.492" Dia (12.50mm) |
| Height - Seated (Max) | 1.240" (31.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| UPZ2G560MHD | Nichicon | CAP ALUM 56UF 20% 400V RADIAL | 98% | View |
| B43254B9566M | EPCOS - TDK Electronics | CAP ALUM 56UF 20% 400V SNAP | 97% | View |
| 420KXF56MEFC22X20 | Rubycon | CAP ALUM 56UF 20% 420V SNAP | 97% | View |
| EGXF351ELL560MK35S | United Chemi-Con | CAP ALUM 56UF 20% 350V RADIAL TH | 93% | View |
| B43254A4566M | EPCOS - TDK Electronics | CAP ALUM 56UF 20% 350V SNAP | 87% | View |
| EKXJ401ELL560MU25S | United Chemi-Con | CAP ALUM 56UF 20% 400V RADIAL | 83% | View |
Submit your RFQ for SW2G560MNN1230 and get a quote within 24 hours.
