ALUMINUM ELECTROLYTIC CAPACITORS

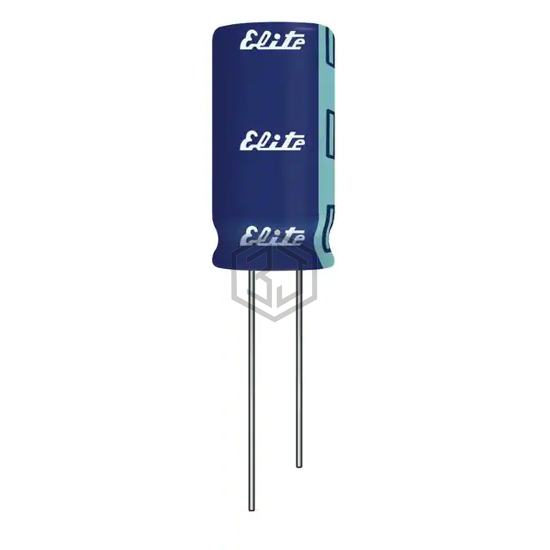

SM1E220MNN0511 is a Aluminum Electrolytic Capacitors manufactured by Chinsan (Elite). ALUMINUM ELECTROLYTIC CAPACITORS. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 25 V, package / case Radial, Can.
In Stock: 4,139
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 22 µF |
| Tolerance | ±20% |
| Voltage - Rated | 25 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 80 mA @ 120 Hz |
| Ripple Current @ High Frequency | 160 mA @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.079" (2.00mm) |
| Size / Dimension | 0.197" Dia (5.00mm) |
| Height - Seated (Max) | 0.492" (12.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| TVX1V220MAD | Nichicon | CAP ALUM 22UF 20% 35V AXIAL | 83% | View |
| UEP1E220MED1TD | Nichicon | CAP ALUM 22UF 20% 25V RADIAL | 82% | View |
| NEH22M35BA | NTE Electronics, Inc | CAP ALUM 22UF 20% 35V AXIAL | 78% | View |
| ESK226M100AE3AA | KEMET | CAP ALUM 22UF 20% 100V RADIAL | 72% | View |
| EKMG161ETD220MJ20S | United Chemi-Con | CAP ALUM 22UF 20% 160V RADIAL | 62% | View |
| 400PX22MEFCG412.5X20 | Rubycon | CAP ALUM 22UF 20% 400V RADIAL | 59% | View |
Submit your RFQ for SM1E220MNN0511 and get a quote within 24 hours.
