ALUMINUM ELECTROLYTIC CAPACITORS

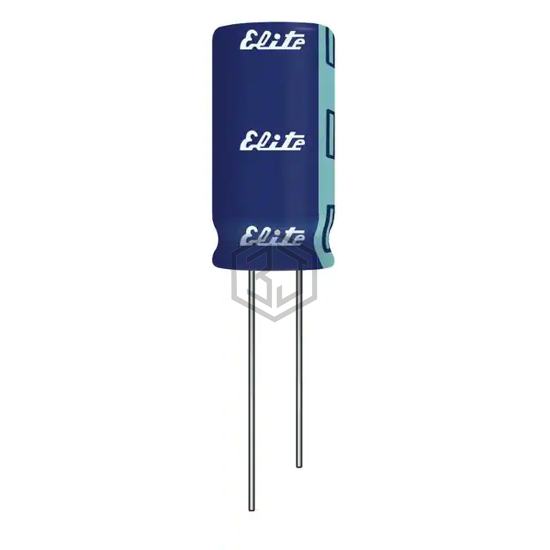

SM1A222MNN1020 is a Aluminum Electrolytic Capacitors manufactured by Chinsan (Elite). ALUMINUM ELECTROLYTIC CAPACITORS. Key specifications: mounting type Through Hole, operating temperature -40°C ~ 85°C, voltage - rated 10 V, package / case Radial, Can.
In Stock: 1,386
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 2200 µF |
| Tolerance | ±20% |
| Voltage - Rated | 10 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 85°C |
| Operating Temperature | -40°C ~ 85°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.31 A @ 120 Hz |
| Ripple Current @ High Frequency | 1.48 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.846" (21.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKZM100ELL222MJ25S | United Chemi-Con | CAP ALUM 2200UF 20% 10V RADIAL | 84% | View |
| ESE228M035AM7AA | KEMET | CAP ALUM 2200UF 20% 35V RADIAL | 76% | View |
| MAL225056222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 25V RADIAL | 72% | View |
| MAL204867222E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 2200UF 20% 40V RADIAL | 67% | View |
| ESMH500VNN222MP25U | United Chemi-Con | CAP ALUM 2200UF 20% 50V SNAP | 62% | View |
| 63USR2200M22X40 | Rubycon | CAP ALUM 2200UF 20% 63V SNAP | 56% | View |
Submit your RFQ for SM1A222MNN1020 and get a quote within 24 hours.
