ALUMINUM ELECTROLYTIC CAPACITORS

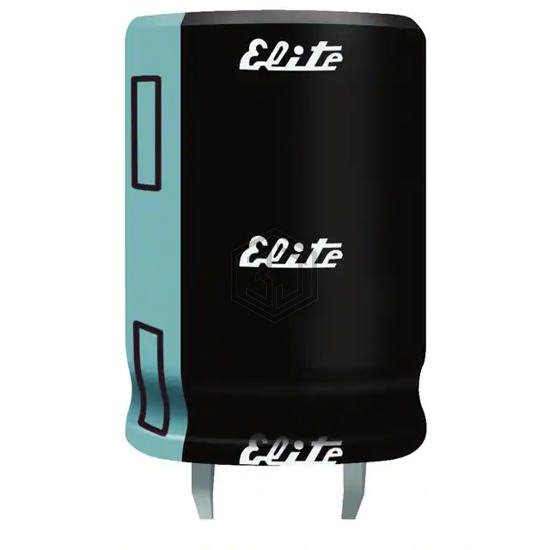

PL2W561MND3045Y is a Aluminum Electrolytic Capacitors manufactured by Chinsan (Elite). ALUMINUM ELECTROLYTIC CAPACITORS. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 1,475
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.03 A @ 120 Hz |
| Ripple Current @ High Frequency | 5.8 A @ 100 kHz |
| Impedance | 280 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| MAL209426561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 400V SNAP | 92% | View |
| EKMH401VNN561MA50U | United Chemi-Con | CAP ALUM 560UF 20% 400V SNAP | 92% | View |
| B43509A9567M000 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 400V SNAP | 91% | View |
| 420MXK560MEFCSN35X35 | Rubycon | CAP ALUM 560UF 20% 420V SNAP | 79% | View |
| ALC80F561EF450 | KEMET | CAP ALUM 560UF 20% 450V SNAP | 75% | View |
| B43508E2567M | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 250V SNAP | 75% | View |
Submit your RFQ for PL2W561MND3045Y and get a quote within 24 hours.
