ALUMINUM ELECTROLYTIC CAPACITORS

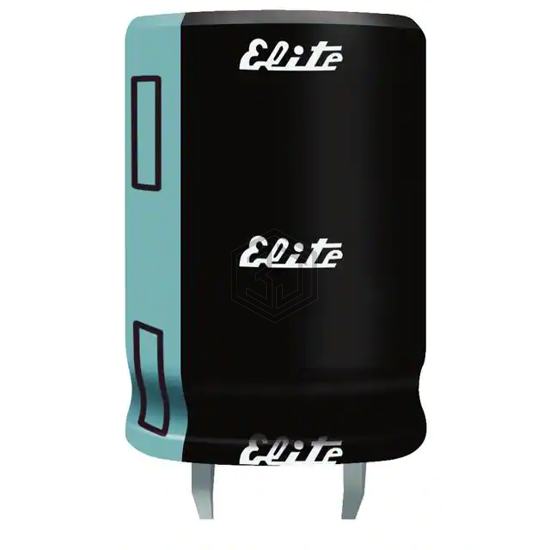

PL2W101MND2225RP is a Aluminum Electrolytic Capacitors manufactured by Chinsan (Elite). ALUMINUM ELECTROLYTIC CAPACITORS. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 9,067
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 2.4Ohm @ 120Hz |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 700 mA @ 120 Hz |
| Ripple Current @ High Frequency | 1.001 A @ 100 kHz |
| Impedance | 1.36 Ohms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.063" (27.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGUW6101MELY | Nichicon | CAP ALUM 100UF 20% 420V SNAP | 98% | View |
| B43504A5107M62 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 450V SNAP | 95% | View |
| B43504A9107M87 | EPCOS - TDK Electronics | CAP ALUM 100UF 20% 400V SNAP | 90% | View |
| EKXG451ELL101MM40S | United Chemi-Con | CAP ALUM 100UF 20% 450V RADIAL | 83% | View |
| 420BXW100MEFR14.5X45 | Rubycon | CAP ALUM 100UF 20% 420V RADIAL | 81% | View |
| 450BXW100MEFR16X45 | Rubycon | CAP ALUM 100UF 20% 450V RADIAL | 80% | View |
Submit your RFQ for PL2W101MND2225RP and get a quote within 24 hours.
