ALUMINUM ELECTROLYTIC CAPACITORS

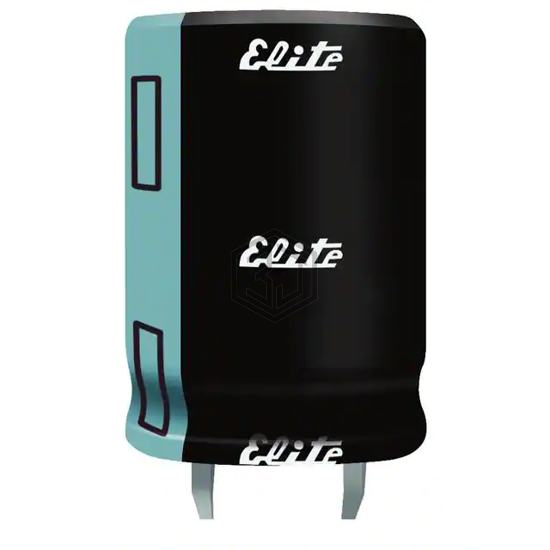

PL2D561MND2241 is a Aluminum Electrolytic Capacitors manufactured by Chinsan (Elite). ALUMINUM ELECTROLYTIC CAPACITORS. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 200 V, package / case Radial, Can - Snap-In.
In Stock: 7,839
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 200 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 1.45 A @ 120 Hz |
| Ripple Current @ High Frequency | 2.175 A @ 100 kHz |
| Impedance | - |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 0.866" Dia (22.00mm) |
| Height - Seated (Max) | 1.693" (43.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| LGN2E561MELB30 | Nichicon | CAP ALUM 560UF 20% 250V SNAP | 92% | View |
| LGU2Z561MELA | Nichicon | CAP ALUM 560UF 20% 180V SNAP | 90% | View |
| 160TXW560MEFR18X40 | Rubycon | CAP ALUM 560UF 20% 160V RADIAL | 85% | View |
| EEU-FC1H561S | Panasonic Electronic Components | CAP ALUM 560UF 20% 50V RADIAL | 75% | View |
| SLP561M315E4P3 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 315V SNAP | 70% | View |
| 80ZLH560MEFCG412.5X40 | Rubycon | CAP ALUM 560UF 20% 80V RADIAL | 68% | View |
Submit your RFQ for PL2D561MND2241 and get a quote within 24 hours.
