ALUMINUM ELECTROLYTIC CAPACITORS

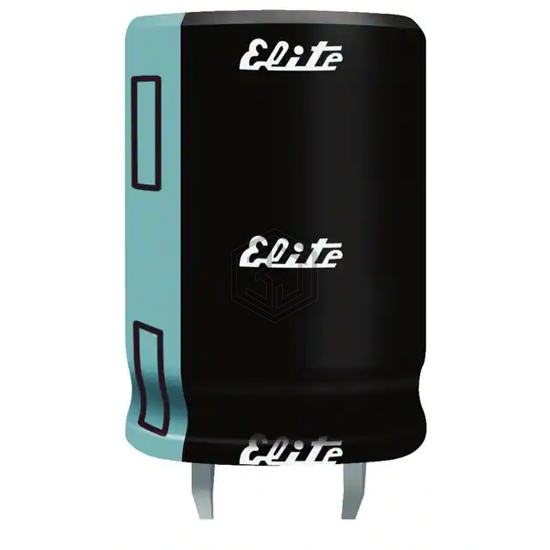

PK2W561MND3045Y is a Aluminum Electrolytic Capacitors manufactured by Chinsan (Elite). ALUMINUM ELECTROLYTIC CAPACITORS. Key specifications: mounting type Through Hole, operating temperature -25°C ~ 105°C, voltage - rated 450 V, package / case Radial, Can - Snap-In.
In Stock: 8,587
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 560 µF |
| Tolerance | ±20% |
| Voltage - Rated | 450 V |
| ESR (Equivalent Series Resistance) | 420mOhm @ 120Hz |
| Lifetime @ Temp. | 3000 Hrs @ 105°C |
| Operating Temperature | -25°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 2.24 A @ 120 Hz |
| Ripple Current @ High Frequency | 3.203 A @ 50 kHz |
| Impedance | 290 mOhms |
| Lead Spacing | 0.394" (10.00mm) |
| Size / Dimension | 1.181" Dia (30.00mm) |
| Height - Seated (Max) | 1.850" (47.00mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can - Snap-In |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EKMS451VSN561MA50S | United Chemi-Con | CAP ALUM 560UF 20% 450V SNAP | 100% | View |
| 400VXG560MEFCSN35X45 | Rubycon | CAP ALUM 560UF 20% 400V SNAP | 95% | View |
| 381LQ561M450A052 | Cornell Dubilier Electronics (CDE) | CAP ALUM 560UF 20% 450V SNAP | 92% | View |
| MAL225973561E3 | Vishay Beyschlag/Draloric/BC Components | CAP ALUM 560UF 20% 250V SNAP | 75% | View |
| B43504E2567M80 | EPCOS - TDK Electronics | CAP ALUM 560UF 20% 200V SNAP | 67% | View |
| EKMQ201VSN561MP30S | United Chemi-Con | CAP ALUM 560UF 20% 200V SNAP | 66% | View |
Submit your RFQ for PK2W561MND3045Y and get a quote within 24 hours.
