ALUMINUM ELECTROLYTIC CAPACITORS

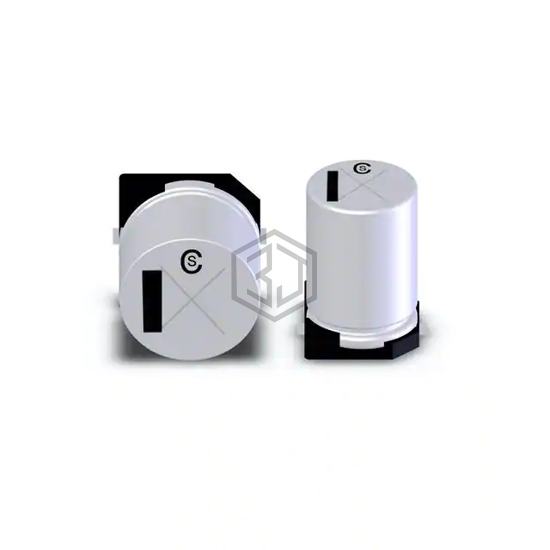

CED1V101MCB6377F2 is a Aluminum Electrolytic Capacitors manufactured by Chinsan (Elite). ALUMINUM ELECTROLYTIC CAPACITORS. Key specifications: mounting type Surface Mount, operating temperature -55°C ~ 105°C, voltage - rated 35 V, package / case Radial, Can - SMD.
In Stock: 5,980
| Attribute | Value |
|---|---|
| Product Status | Active |
| Capacitance | 100 µF |
| Tolerance | ±20% |
| Voltage - Rated | 35 V |
| ESR (Equivalent Series Resistance) | - |
| Lifetime @ Temp. | 1000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Polarization | Polar |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | 112 mA @ 120 Hz |
| Ripple Current @ High Frequency | 280 mA @ 100 kHz |
| Impedance | 340 mOhms |
| Lead Spacing | - |
| Size / Dimension | 0.248" Dia (6.30mm) |
| Height - Seated (Max) | 0.315" (8.00mm) |
| Surface Mount Land Size | 0.260" L x 0.260" W (6.60mm x 6.60mm) |
| Mounting Type | Surface Mount |
| Package / Case | Radial, Can - SMD |
| Part Number | Manufacturer | Description | Match | |
|---|---|---|---|---|
| EEE-FKE101XAL | Panasonic Electronic Components | CAP ALUM 100UF 20% 25V SMD | 81% | View |
| AEH1012101M063R | KYOCERA AVX | ALUMINUM CAP | 80% | View |
| EEE-FN1E101UP | Panasonic Electronic Components | CAP ALUM 100UF 20% 25V SMD | 78% | View |
| UUD1C101MCL1GS | Nichicon | CAP ALUM 100UF 20% 16V SMD | 74% | View |
| UCL1A101MCL1GS | Nichicon | CAP ALUM 100UF 20% 10V SMD | 71% | View |
| UCL0J101MCL1GS | Nichicon | CAP ALUM 100UF 20% 6.3V SMD | 71% | View |
Submit your RFQ for CED1V101MCB6377F2 and get a quote within 24 hours.
