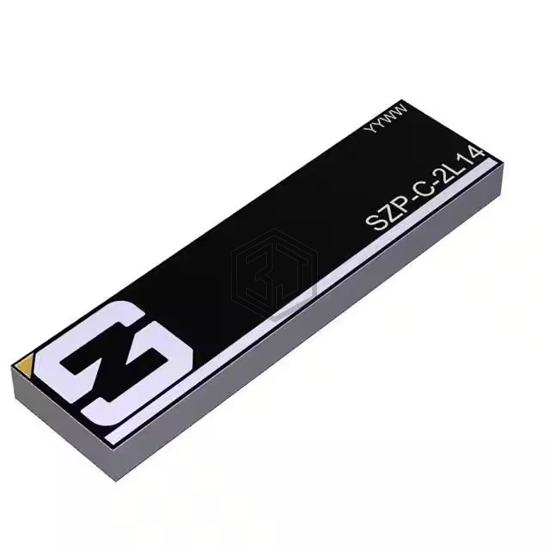

5G ANT 617-5000MHZ SMD CHIP
SZP-C-2L14 is a RF Antennas manufactured by Synzen. 5G ANT 617-5000MHZ SMD CHIP. Key specifications: mounting type Surface Mount, termination Solder, frequency range 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz.
In Stock: 20
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 788.5MHz, 1.4725GHz, 1.955GHz, 2.35GHz, 2.595GHz, 3.75GHz |
| Frequency Range | 617MHz ~ 960MHz, 1.427GHz ~ 1.518GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz, 3.3GHz ~ 4.2GHz |
| Antenna Type | Chip |
| Number of Bands | 6 |
| VSWR | - |
| Return Loss | - |
| Gain | 1.47dBi, 0.01dBi, 2.82dBi, 3.69dBi, 3.26dBi, 5.91dBi |
| Power - Max | - |
| Features | - |
| Termination | Solder |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.130" (3.30mm) |
| Applications | 2G, 3G, 4G, 5G, LTE |
Submit your RFQ for SZP-C-2L14 and get a quote within 24 hours.
