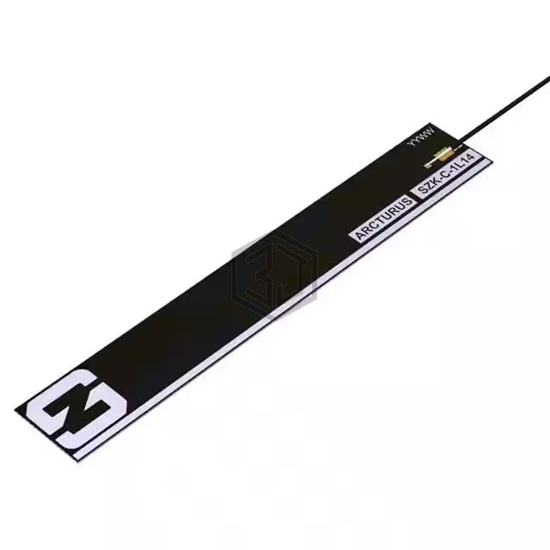

5G ANT FLAT PATCH IPEX
SZK-C-1L14 is a RF Antennas manufactured by Synzen. 5G ANT FLAT PATCH IPEX. Key specifications: mounting type Adhesive, termination U.FL (UMCC), IPEX MHF1, power - max 5 W, frequency range 617MHz ~ 960MHz, 1.427GHz ~ 1.66GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz.
In Stock: 30
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 788.5MHz, 1.5435GHz, 1.955GHz, 2.35GHz |
| Frequency Range | 617MHz ~ 960MHz, 1.427GHz ~ 1.66GHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 4 |
| VSWR | 1.3, 2.3, 4, 5.9 |
| Return Loss | -3dB, -4.4dB, -8dB, -17dB |
| Gain | 2.8dBi, 1.2dBi, 2.9dBi, 3.2dBi |
| Power - Max | 5 W |
| Features | Cable - 180mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Adhesive |
| Height (Max) | 0.008" (0.20mm) |
| Applications | 2G, 3G, 4G, 5G |
Submit your RFQ for SZK-C-1L14 and get a quote within 24 hours.
