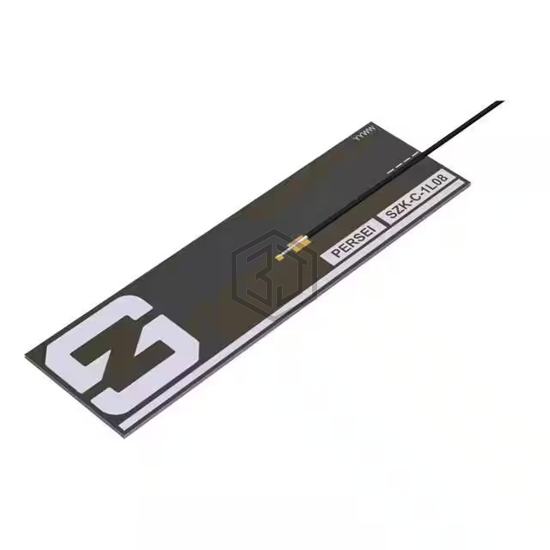

4G LTE FLAT PATCH IPEX (FR4)
SZK-C-1L08 is a RF Antennas manufactured by Synzen. 4G LTE FLAT PATCH IPEX (FR4). Key specifications: mounting type Surface Mount, termination U.FL (UMCC), IPEX MHF1, power - max 5 W, frequency range 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz.
In Stock: 15
| Attribute | Value |
|---|---|
| Product Status | Active |
| RF Family/Standard | Cellular |
| Frequency Group | Wide Band |
| Frequency (Center/Band) | 829MHz, 1.955GHz, 2.35GHz, 2.595GHz |
| Frequency Range | 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.3GHz ~ 2.4GHz, 2.5GHz ~ 2.69GHz |
| Antenna Type | PCB Trace |
| Number of Bands | 4 |
| VSWR | 1.5, 1.7, 1.75, 2.9 |
| Return Loss | -6dB, -11.3dB, -11.4dB, -13.8dB |
| Gain | 2.3dBi, 2.6dBi, 2.9dBi, 3.5dBi |
| Power - Max | 5 W |
| Features | Cable - 150mm |
| Termination | U.FL (UMCC), IPEX MHF1 |
| Ingress Protection | - |
| Mounting Type | Surface Mount |
| Height (Max) | 0.024" (0.60mm) |
| Applications | 2G, 3G, 4G, LTE |
Submit your RFQ for SZK-C-1L08 and get a quote within 24 hours.
